Connector & Micro-Component Packaging Manufacturer IndiaESD-Safe Precision Trays, Bulk from Vapi
Custom ESD-safe thermoformed precision trays for electronic connectors, terminal arrays, micro-components, and small electronic parts — individual cavity isolation, terminal pin protection, connector body geometry. Bulk electronics packaging manufacturer Vapi — ISO 9001:2015, ESD-safe PP, resistivity CoA.
Click for full photo
Click for full photo
Click for full
photoConnector & Micro-Component Packaging Manufacturer IndiaESD-Safe Precision Trays, Bulk from Vapi
Trizen Packaging manufactures connector and micro-component packaging from our ISO 9001:2015 certified facility in Vapi, Gujarat — custom ESD-safe thermoformed precision trays for electronic connectors, terminal arrays, micro-components, and small electronic parts. Bulk electronics packaging manufacturer Vapi for connector manufacturers, electronics assembly companies, and EMS providers across India and for export.
Electronic connectors and micro-components are the most precision-sensitive category of electronics packaging — connector pin arrays have tolerances of 0.5mm to 0.1mm pitch that must not be deformed by packaging contact, contaminated by particulates, or damaged by ESD. The thermoformed cavity must accommodate the connector body while providing specific clearance for each pin or terminal in the array.
| Device / Component | Packaging Format | Material | Key Requirement |
|---|---|---|---|

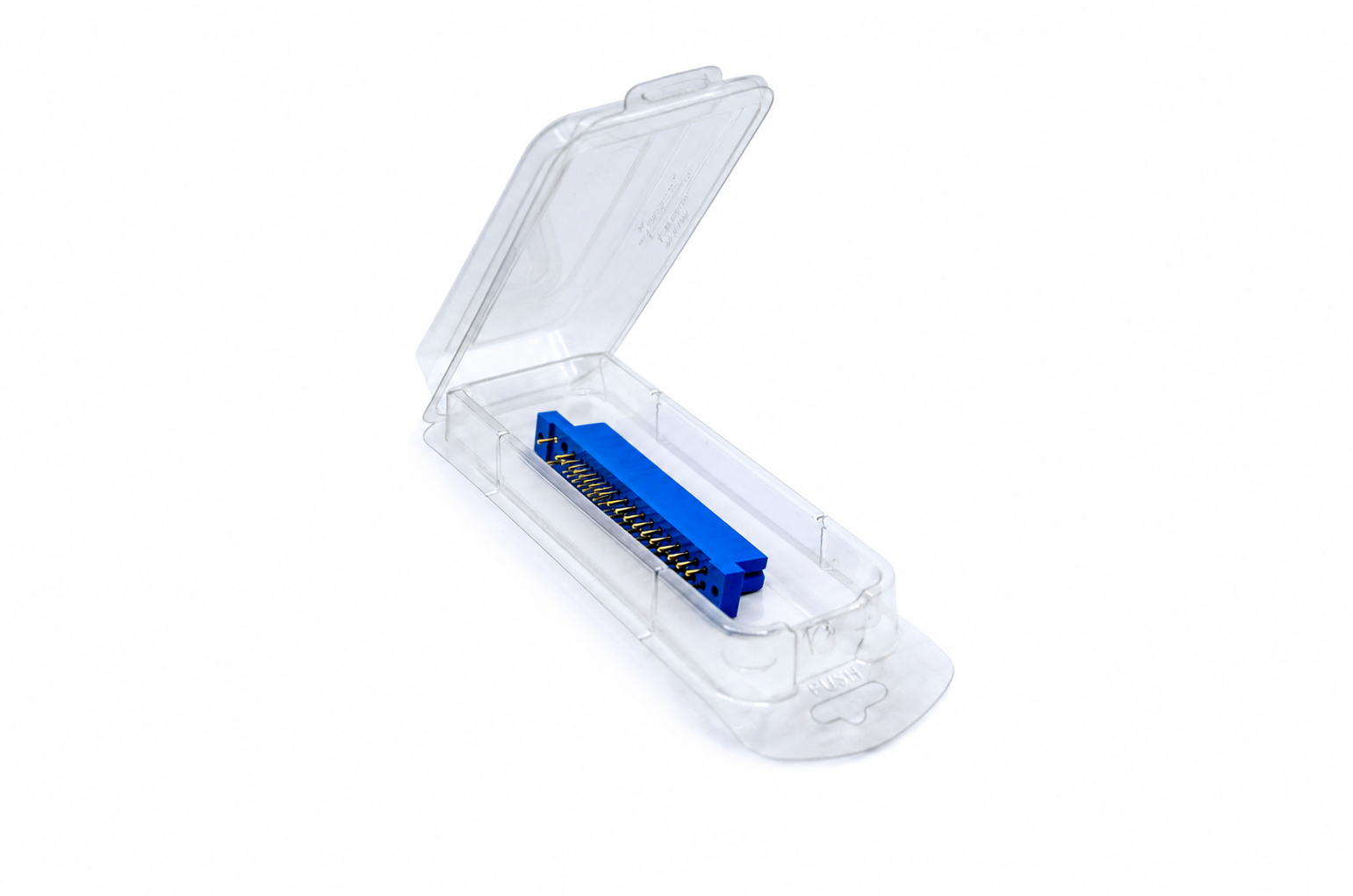

| PCB Connectors (2.54mm, 1.27mm pitch) | Precision ESD-safe PP tray — connector body cavity | ESD-safe PP | Pin array clearance, body support, pitch maintained, ESD protection |
| IDC & FPC Connectors | Multi-cavity ESD-safe PP tray | ESD-safe PP | Locking latch protection, FPC slot clearance, ESD-safe |
| RF Coaxial Connectors | Individual cavity ESD-safe PP or PETG tray | ESD-safe PP/PETG | Coax pin protection, centre conductor clearance, no contact on RF interface |
| USB & HDMI Connectors | Multi-cavity ESD-safe PP tray | ESD-safe PP | Contact surface protection, housing protection, individual isolation |

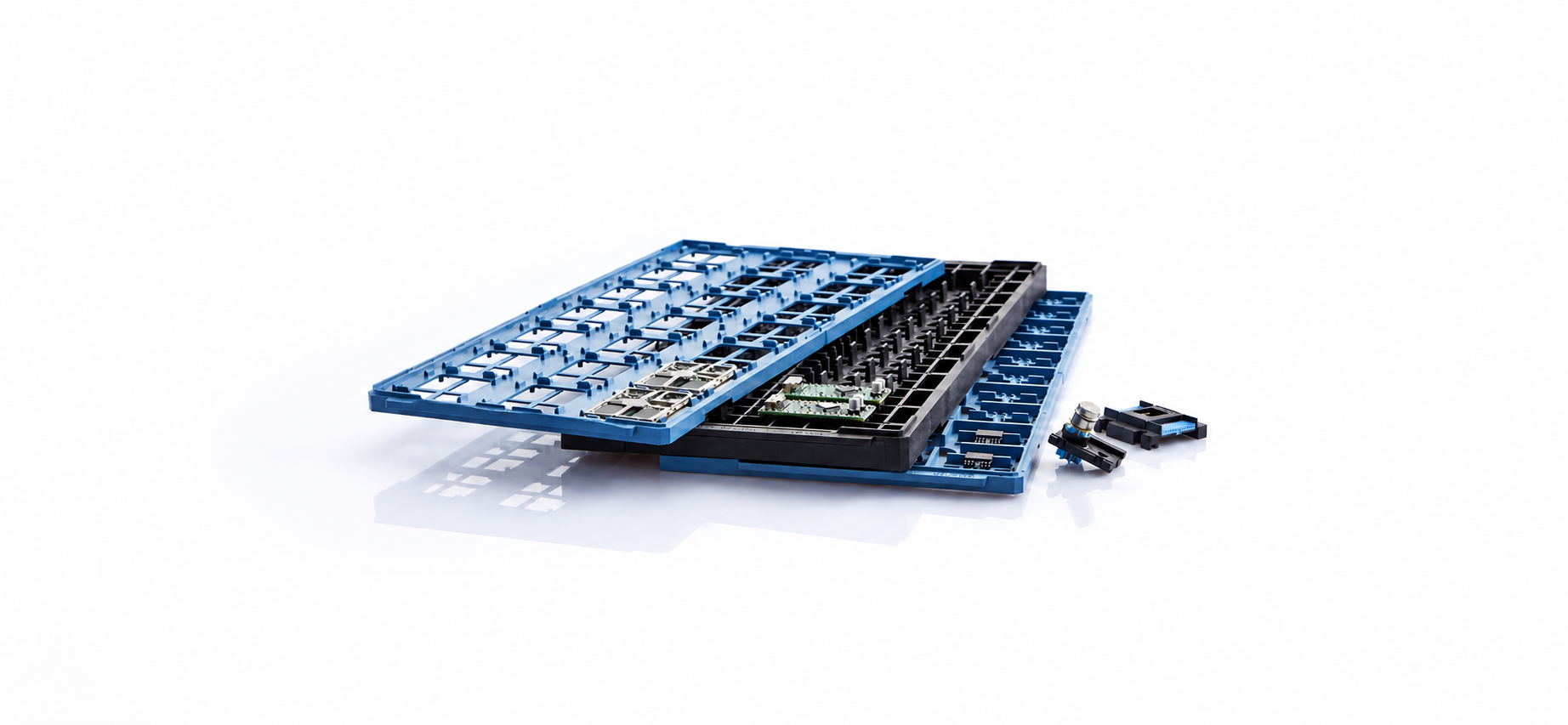

| Micro-Components (Resistors, Capacitors <0402) | High-density ESD-safe PP tape/tray | ESD-safe PP | Component body protection, static-free, high density per tray |
| Terminal Blocks & Screw Terminals | Multi-cavity ESD-safe PP tray | ESD-safe PP | Screw terminal protection, captive spring protection, no contact on mating face |
| Custom Connector Arrays & Harness Connectors | Custom cavity ESD-safe PP tray | ESD-safe PP | Multi-cavity layout from connector array specification, all connectors isolated |
Connector & Micro-Component Packaging — ESD-Safe OEM from Vapi
ESD-safe PP & PETG · Resistivity CoA per batch · ISO 9001:2015 · 7–14 day prototype.
Three Problems Connector & Micro-Component Packaging Buyers Face
Connector & Micro-Component Packaging Key Design Requirements
Click for full photo
01 / Connector control

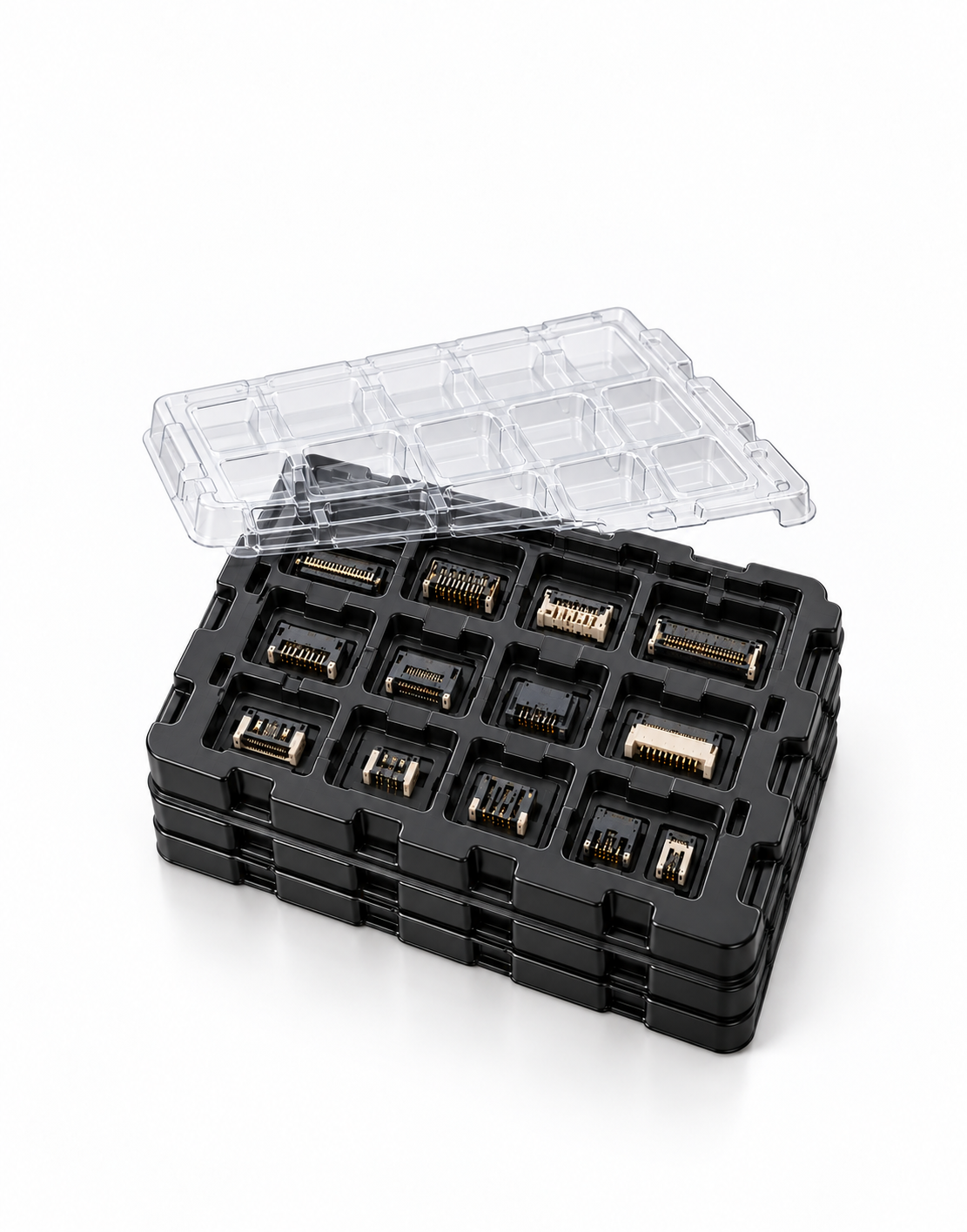

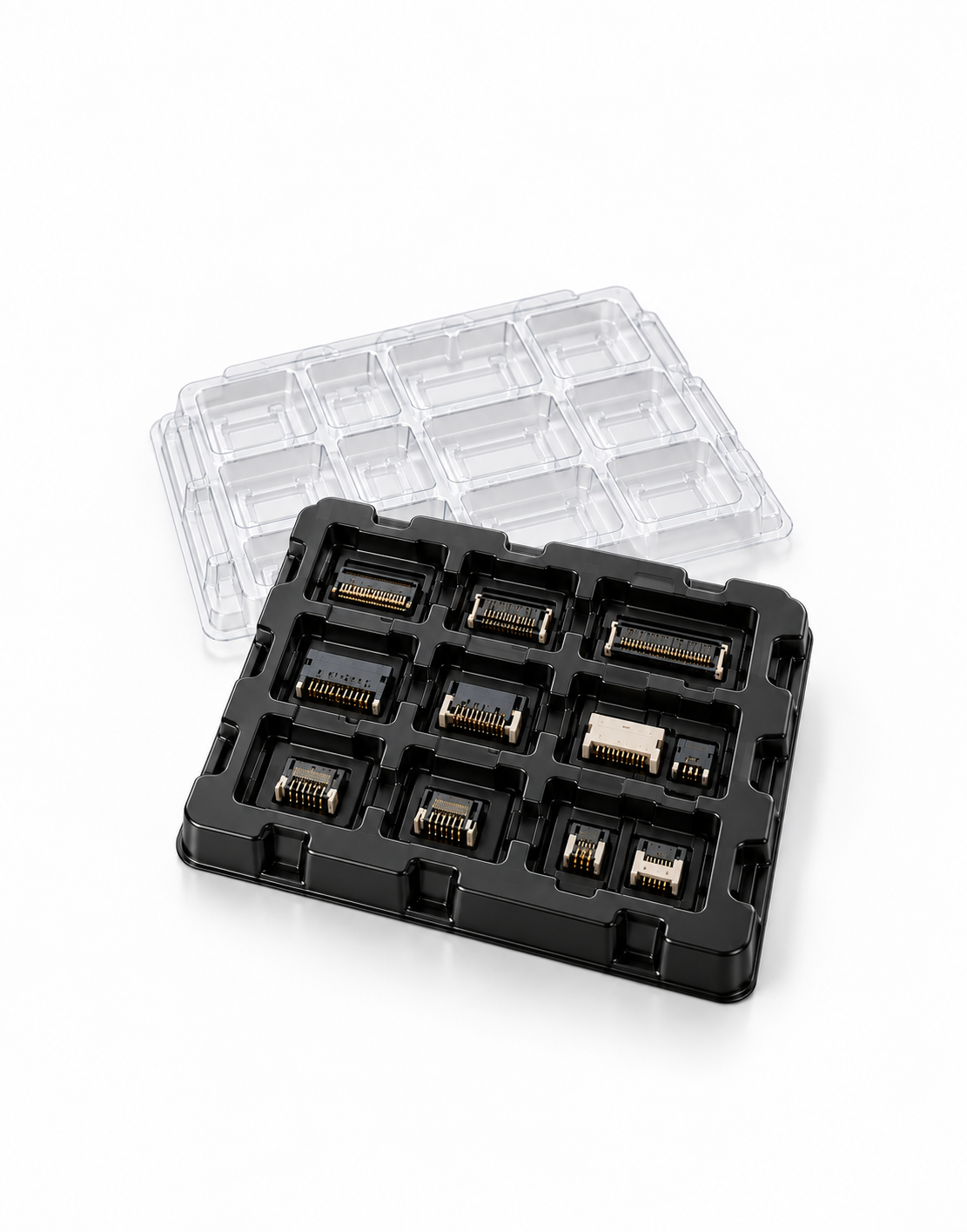

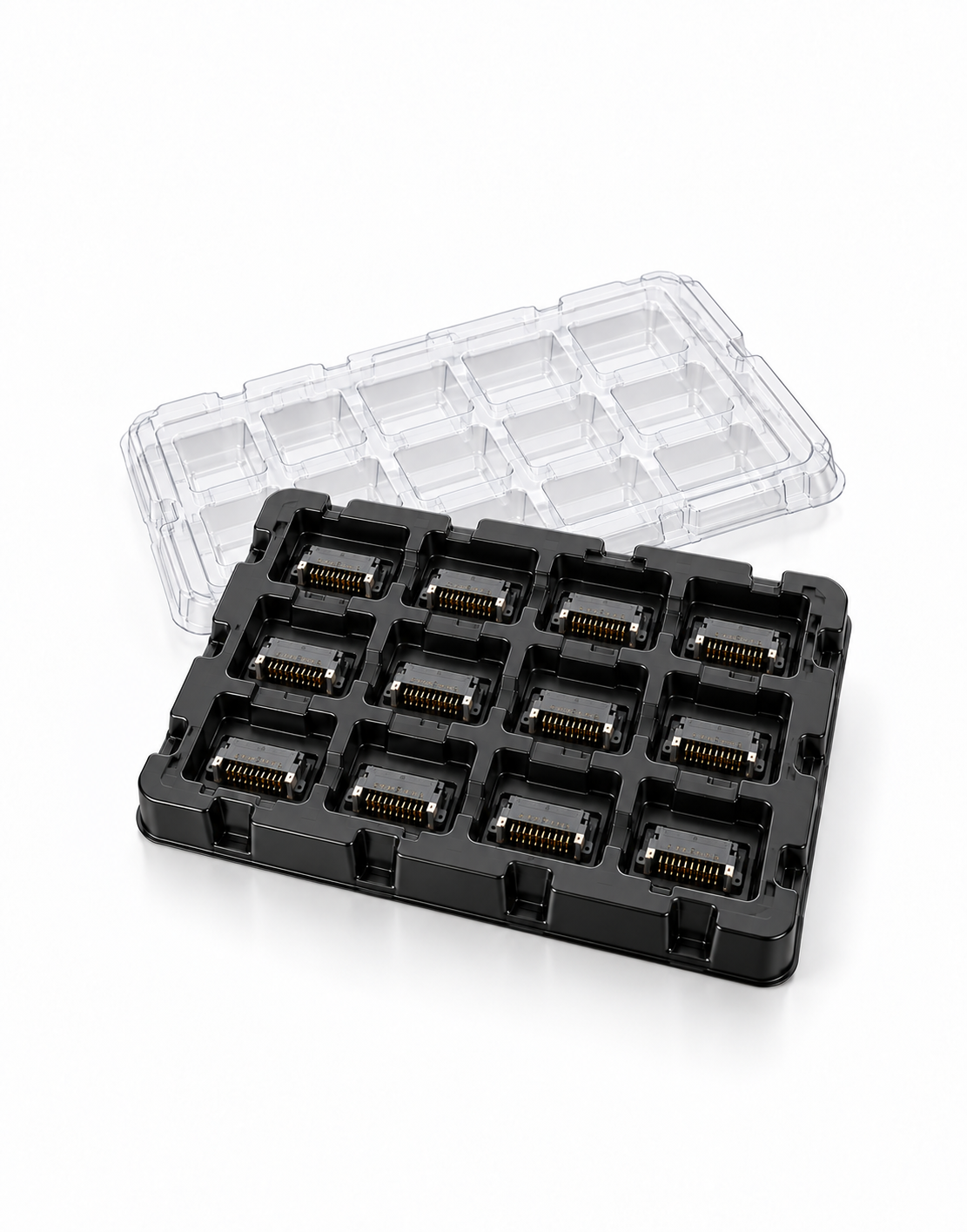

Pin Array Clearance — No Packaging Contact with Terminal Pins
Connector pin array geometry confirmed from component specification or physical connector. Each pin in the array has a dedicated clearance zone in the cavity — the pin cannot contact the cavity wall. Pin array clearance is the primary design requirement for all connector packaging.
Connector & Micro-Component Packaging — Submit Component Sample
ESD-safe CoA · Precision cavity · 7–14 day prototype · ISO 9001:2015.
Materials for Connector & Micro-Component Packaging
| Material | Electronics Application | Key Property |
|---|---|---|
| ESD-Safe PP | Primary — all electronic connector packaging, terminal arrays, micro-components | 10⁶–10⁹ Ω/sq, rigid geometry, pin array clearance compatible, cost-efficient OEM |
| ESD-Safe PETG | RF connectors and precision components requiring inspection through packaging | ESD protection + crystal clarity |
| Standard PP | Outer transit packaging only — never in direct contact with connectors | Insulating — not ESD-safe, not for connector contact packaging |
Why Electronics Manufacturers Choose Trizen for Connector & Micro-Component Packaging
Frequently Asked QuestionsElectronics thermoforming packaging
Custom ESD-safe PP and PETG trays for PCB connectors, IDC and FPC connectors, RF coaxial connectors, USB and HDMI connectors, micro-components, terminal blocks, and custom connector arrays. ISO 9001:2015. Bulk electronics packaging manufacturer Vapi.
Connector pin array geometry confirmed from component specification. Each pin has a dedicated clearance zone in the cavity — the pin cannot contact the cavity wall. Mating face clearance prevents contact with the electrical interface surface.
Connector contact surfaces (gold-plated pins, spring contacts, press-fit terminals) are ESD-sensitive — ESD damage causes contact resistance increase in service. ESD-safe PP provides charge dissipation protection throughout the supply chain.
ESD-safe PP (primary), ESD-safe PETG (RF connectors requiring optical clarity). Resistivity CoA per batch.
Bulk electronics packaging manufacturer Vapi. Electronics packaging Gujarat for connector manufacturers. ISO 9001:2015 and ESD CoA per run.
2.54mm, 1.27mm, 1.0mm, and 0.8mm pitch PCB connectors — cavity geometry confirmed from the specific connector pitch and body dimensions. Sub-millimetre pitch confirmed from physical connector before tooling.
Prototype: 7 to 14 business days. MOQ from 500 units. ESD CoA and ISO 9001:2015 per batch.
Connector & Micro-Component Packaging — ESD-Safe OEM from Vapi
ESD-safe PP & PETG · Resistivity CoA per batch · ISO 9001:2015 · 7–14 day prototype · Vapi, Gujarat
