photoVascular Packaging Manufacturer IndiaCatheter Packaging Trays, Cleanroom Class 8 · Vapi
Trizen Packaging manufactures vascular packaging from our Cleanroom Class 8, GMP-compliant, ISO 9001:2015 certified facility in Vapi, Gujarat — custom PETG thermoformed catheter packaging trays, stent packaging components, guide wire packaging, trocar packaging blister trays, and angioplasty device packaging. Vascular packaging manufacturer from Vapi for interventional cardiology and vascular device companies across India and for export.
Vascular device packaging covers the widest range of device geometries in medical packaging — from ultra-fine guide wires (0.014 inch diameter) to large-bore catheters (32 French) to coiled stent delivery systems. Each device geometry requires custom thermoformed cavity design from the specific device profile. The consistent requirement across all vascular device packaging is sterile barrier integrity — vascular devices are implanted or introduced into the circulatory system, where any contamination is life-threatening.
| Medical Device / Application | Packaging Format | Material | Key Requirement |
|---|---|---|---|

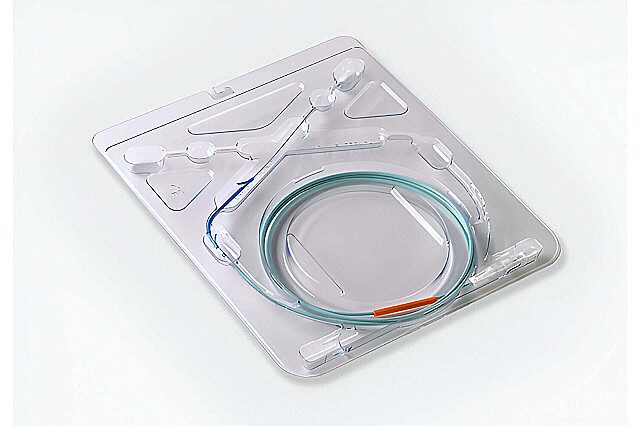

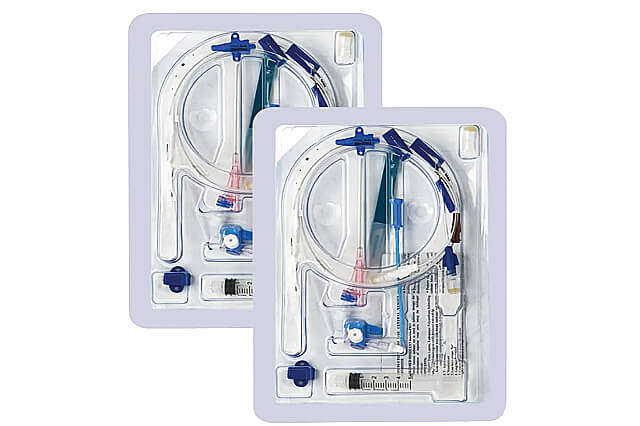

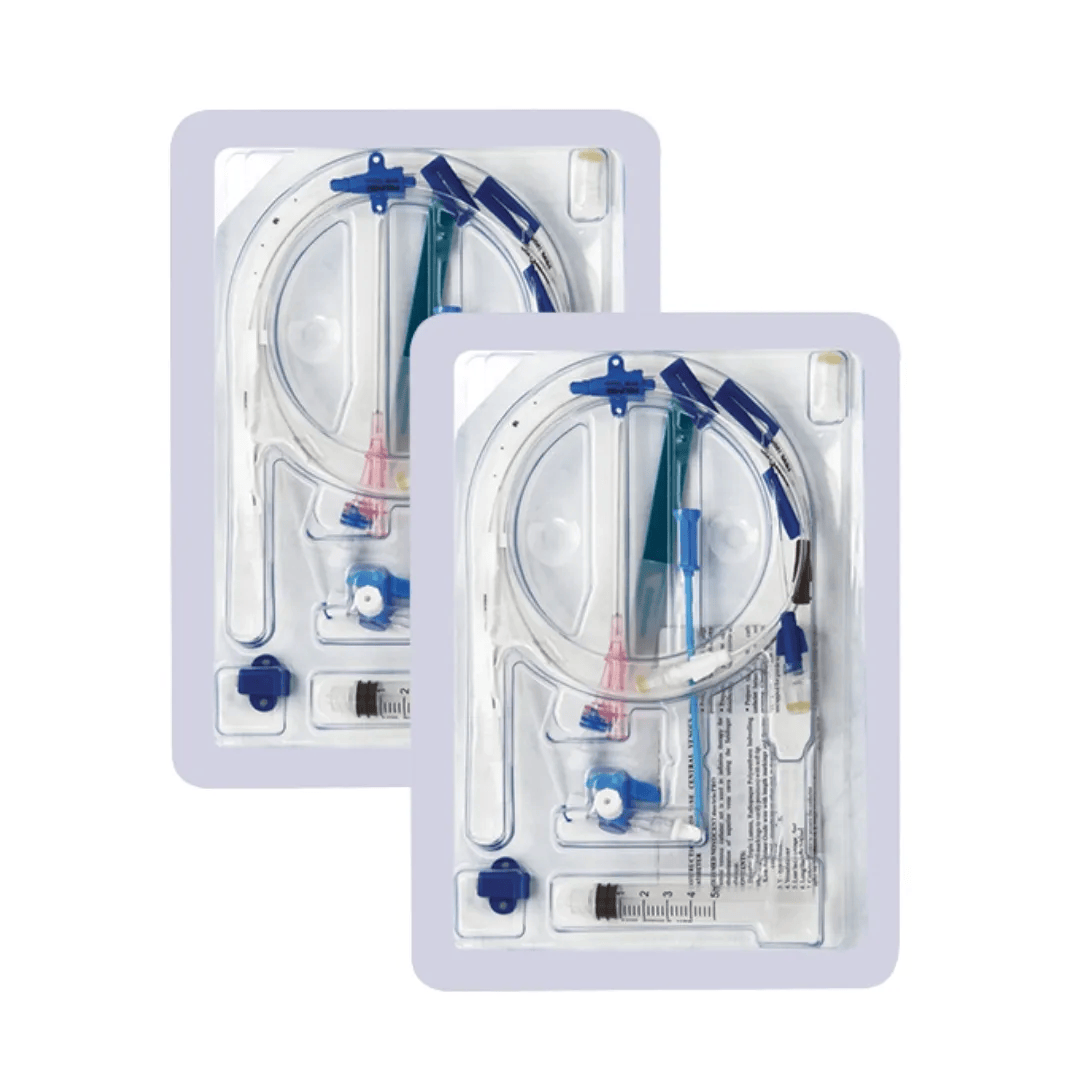

| Central Venous Catheter (CVC) Packaging | PETG thermoformed tray — catheter coiled in defined position | Medical-grade PETG | Catheter coil geometry support, hub protection, lumen cap clearance |
| Stent & Stent Delivery System Packaging | PETG face seal blister tray — delivery system in linear cavity | Medical-grade PETG | Delivery system profile support, balloon protection, hub geometry |

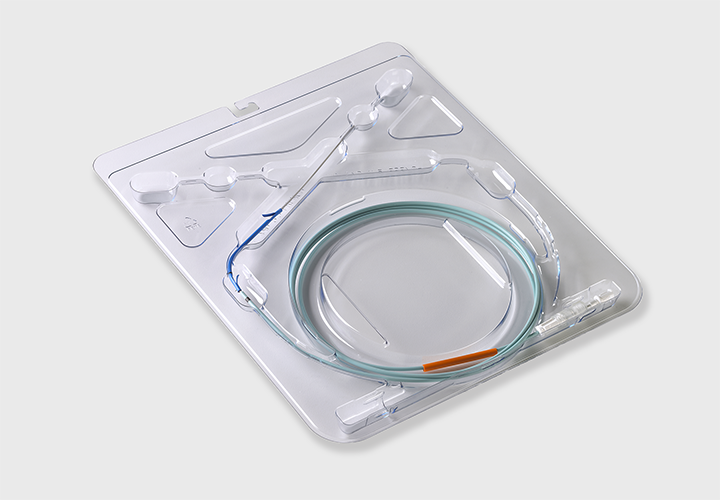

| Guide Wire Packaging | PETG or HIPS tray — guide wire coiled without kink stress | Medical-grade PETG/HIPS | No kink stress geometry, coil radius minimum confirmed, tip protection |
| Angioplasty Balloon Catheter Packaging | PETG face seal blister — balloon catheter in linear cavity | Medical-grade PETG | Balloon protection from pinch points, catheter curve geometry, hub clearance |

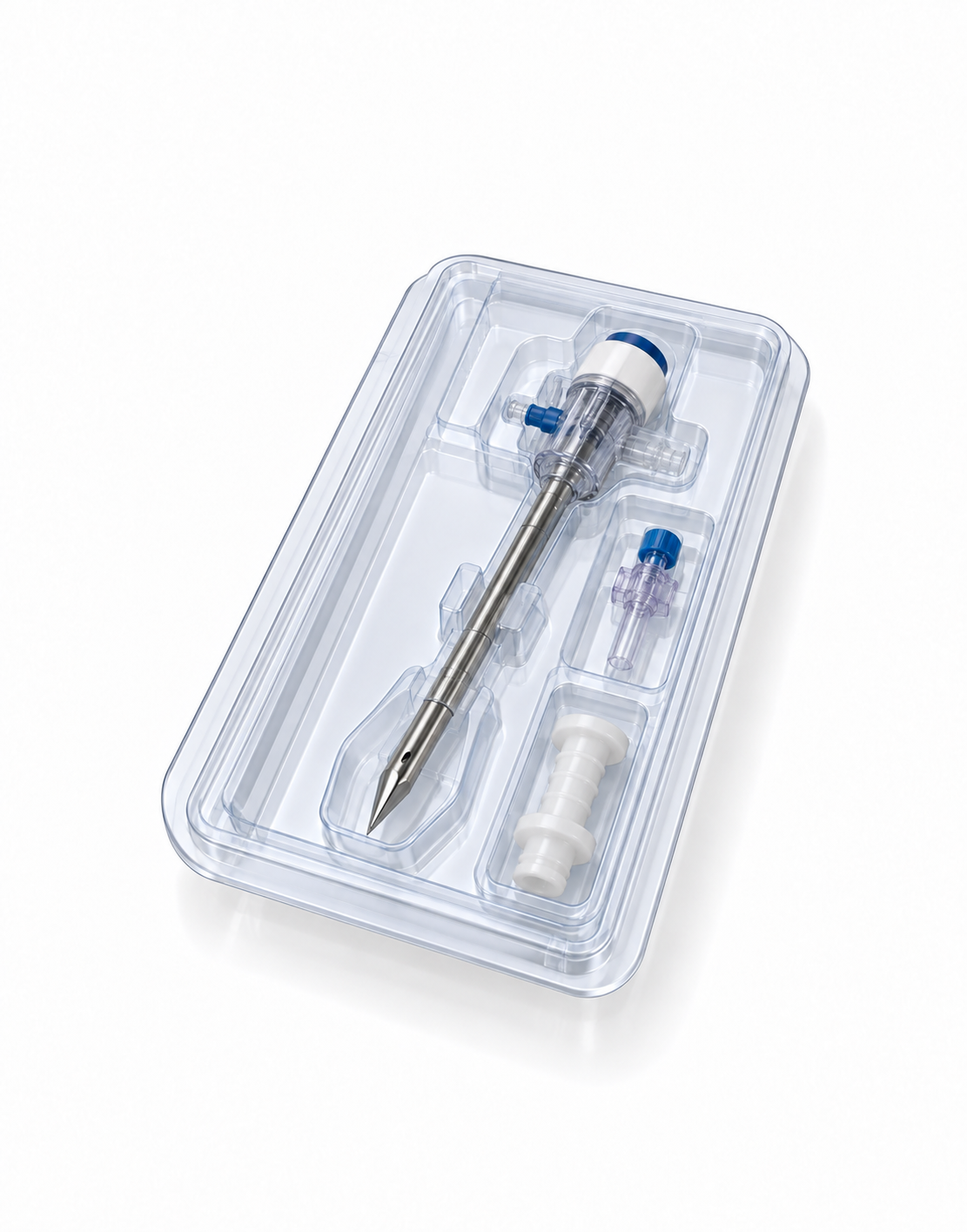

| Trocar & Cannula Packaging | PETG face seal blister tray — trocar in tip-protected cavity | Medical-grade PETG | Trocar tip protection, cannula length support, face seal flange |
| Drainage Catheter & Tube Packaging | PETG thermoformed tray — drainage catheter in coiled or linear format | Medical-grade PETG | Catheter lumen patency maintenance, tip protection, face seal flange |

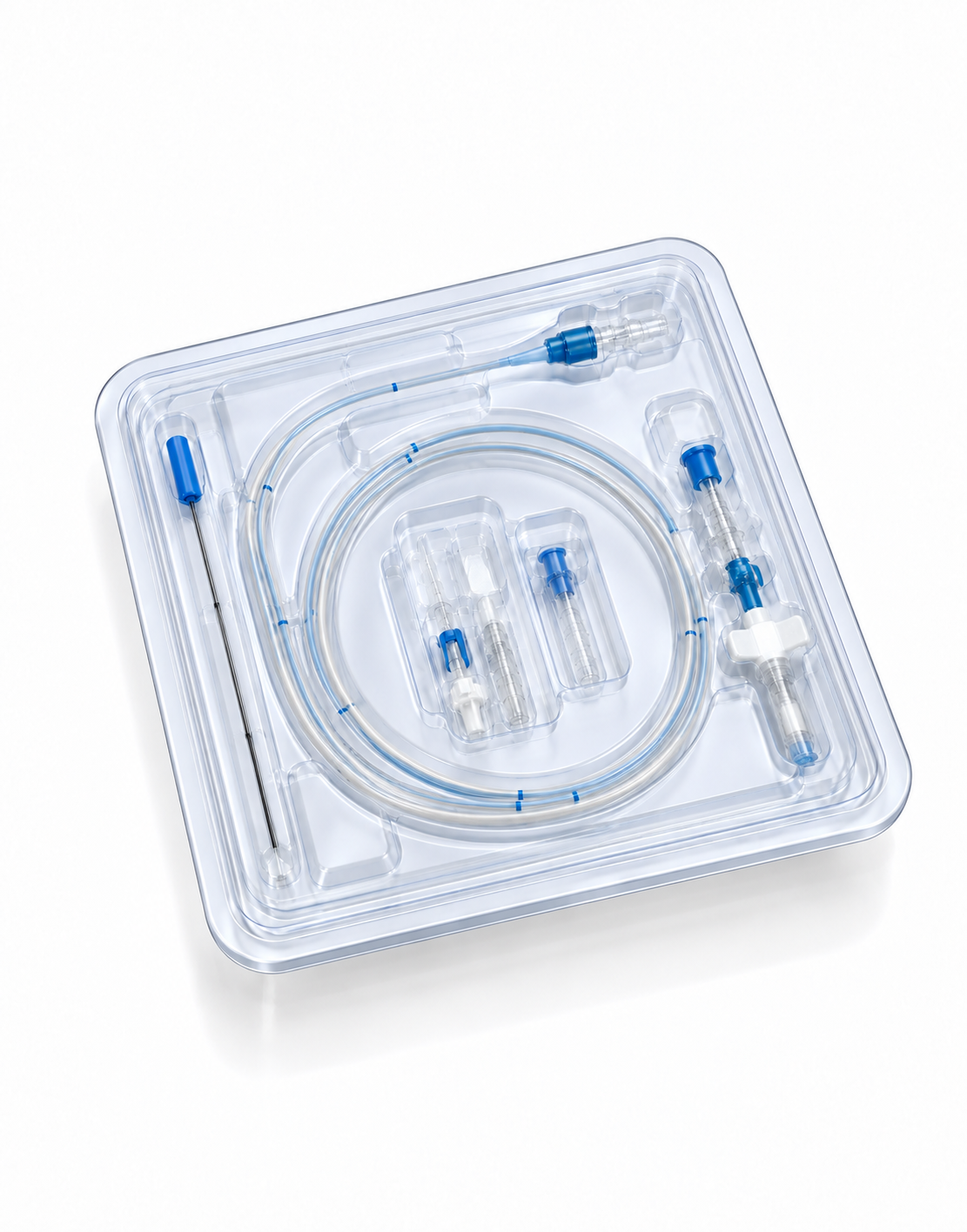

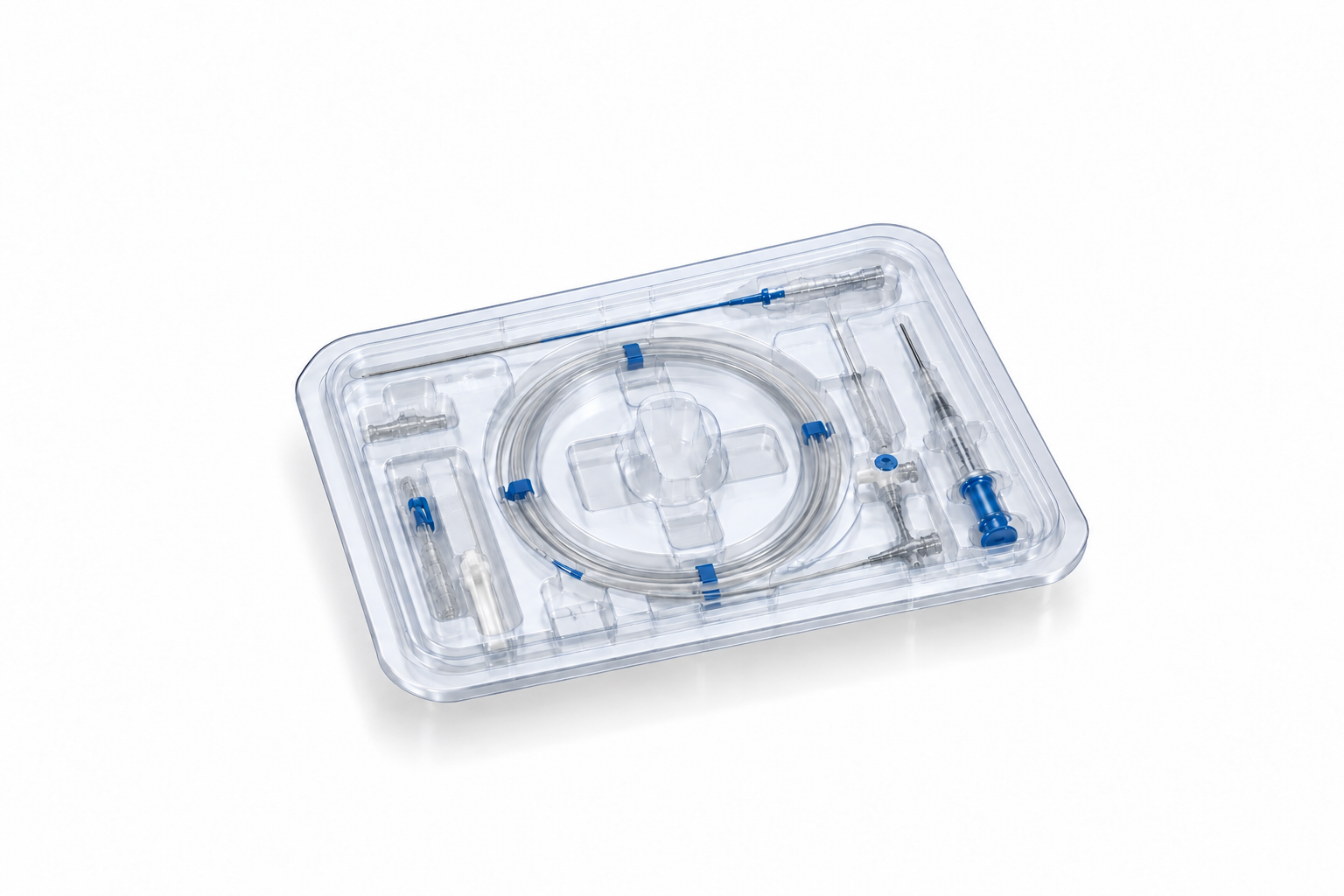

| Combi Pack Vascular Trays | Multi-device PETG tray — catheter + guide wire + accessories | Medical-grade PETG | Each device in defined position, combined kit sterile presentation |
Vascular Packaging — Technical Enquiry
Medical-grade PETG · Cleanroom Class 8 · GMP · ISO 9001:2015 · ISO 11607 compatible.
Vascular PackagingSpecific Technical Requirements
Vascular Packaging Key Design Requirements
Click for full photo
01 / Vascular control

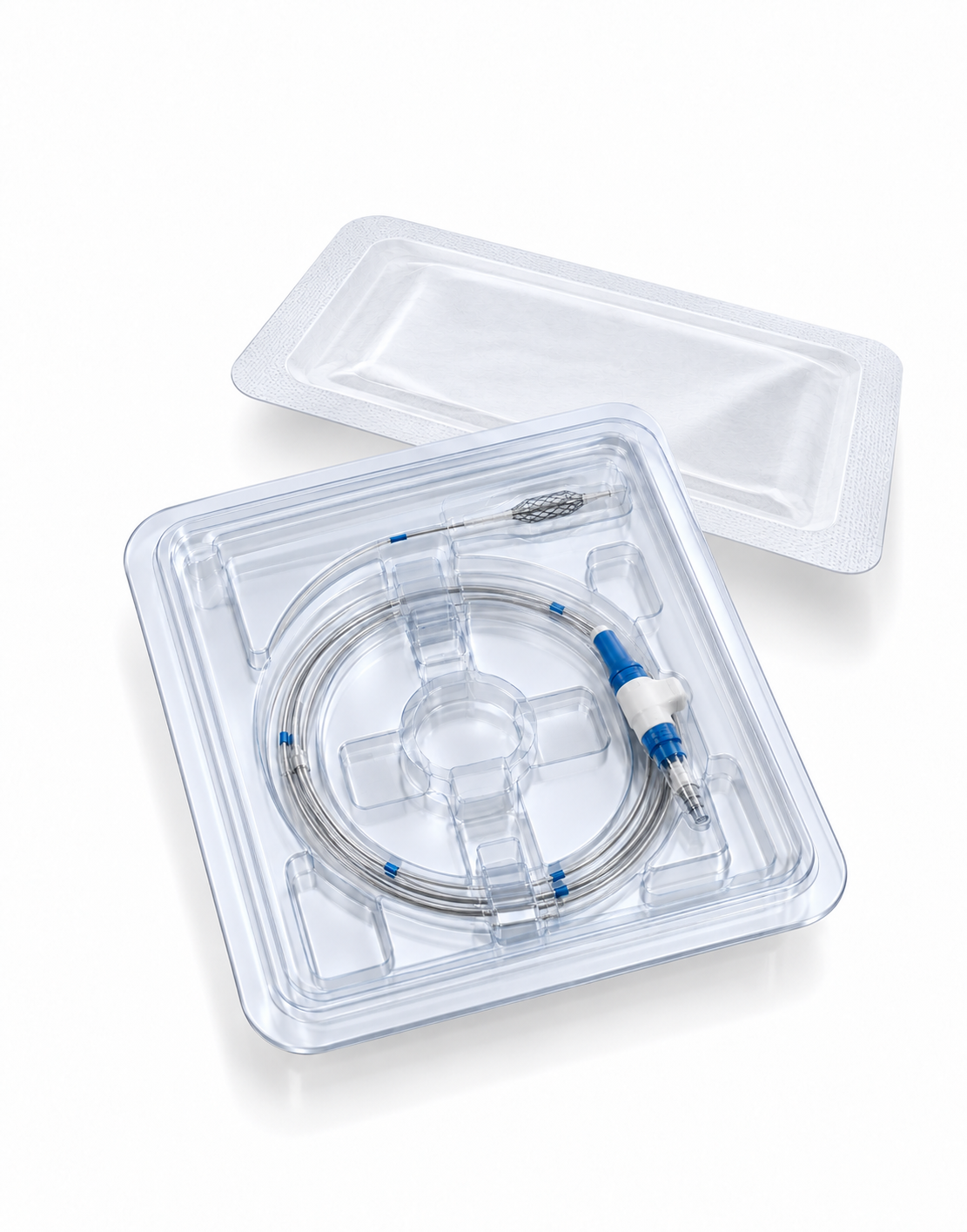

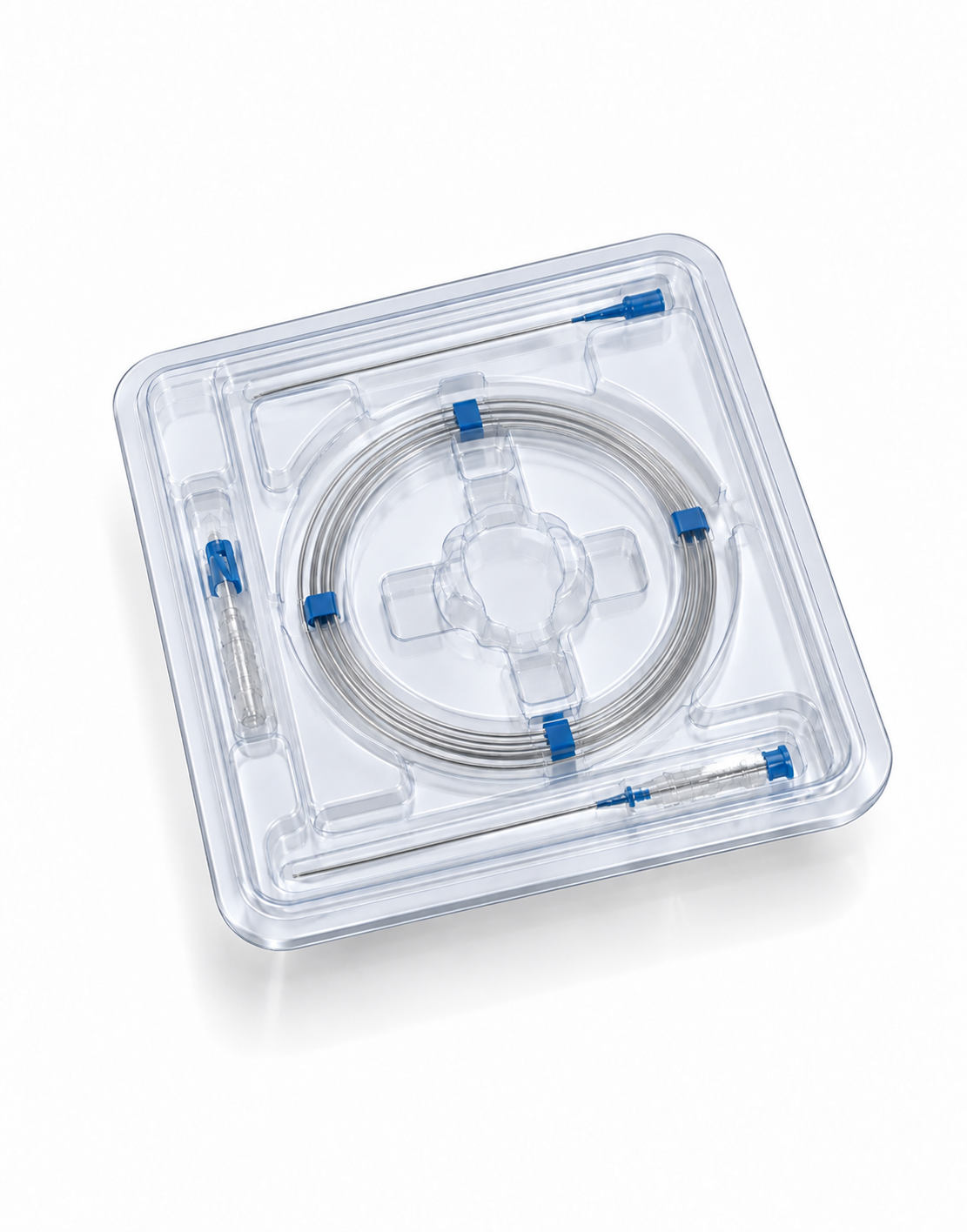

Guide Wire Coil Cavity — Minimum Bend Radius Confirmed Before Tooling
Minimum bend radius confirmed from guide wire technical specification before coil cavity design. Cavity coil radius designed to exceed minimum bend radius. No kink stress on any section of the guide wire in the packaging.
Vascular Packaging — Submit Device Drawing
Cleanroom Class 8 · GMP · ISO 9001:2015 · Medical-grade PETG · Validation support documentation.
Materials for Vascular Packaging
| Material | Medical Application | Key Property |
|---|---|---|

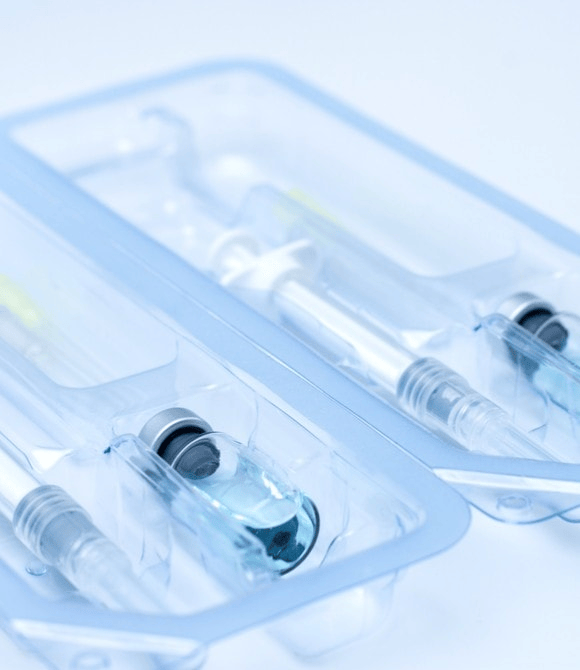

| Medical-Grade PETG | Primary — face seal blister trays, lidded trays, all sterile barrier packaging components | EO and gamma compatible, ISO 11607 compatible, medical-grade additive specification, CoA per batch |
| Medical-Grade HIPS | Protective transit trays and secondary packaging where sterile barrier is not required | Good impact resistance, chemical resistance, cost-efficient for non-sterile-barrier applications |
| Medical-Grade PP | Non-sterile-barrier protective packaging — device presentation trays | Chemical resistance, dimensional stability, autoclave compatible grades available |
Why Medical Device Companies Choose Trizen for Vascular Packaging
Frequently Asked QuestionsMedical device packaging
PETG thermoformed packaging for catheter packaging trays (CVC, drainage catheters), stent and delivery system packaging, guide wire packaging, angioplasty balloon catheter packaging, trocar and cannula packaging, and combi pack vascular trays. Cleanroom Class 8, GMP, ISO 9001:2015. Vascular packaging manufacturer from Vapi, Gujarat.
ISO 9001:2015, GMP, and Cleanroom Class 8 (ISO 14644-1 — 100,000 particles/m³). All medical packaging components produced in the Class 8 cleanroom with full GMP batch documentation per production batch.
Yes — medical-grade PETG is compatible with Ethylene Oxide (EO) sterilization and gamma radiation sterilization. EO compatibility confirmed by material CoA per production batch.
First article inspection report, dimensional inspection records per production batch, material CoA with medical-grade PETG specification per batch, batch records, ISO 9001:2015 certificate, GMP compliance documentation.
Vascular packaging manufacturer Vapi — Cleanroom Class 8, GMP, ISO 9001:2015. Vascular packaging manufacturer Gujarat for medical device companies. Medical packaging manufacturer from India for domestic and export medical device markets.
Trizen manufactures the thermoformed PETG packaging component — the tray or blister shell. Device loading, Tyvek/foil lidding, heat sealing, and sterilization are performed by the medical device manufacturer. Clear scope for DHF traceability.
First article: 14 to 21 business days from device technical drawing or sample — cleanroom CNC tooling at Vapi. ISO 9001:2015, GMP, and Cleanroom Class 8 documentation per production batch.
