Clamshell Packaging Manufacturer IndiaCustom Retail, Pharmaceutical and Industrial Clamshells, Vapi
Custom clamshell packaging for retail, consumer healthcare, electronics, hardware and commercial applications since 2005. In-house CNC tooling — prototype in 7 to 14 business days.
What is Clamshell Packaging?Formats, Sealing and Applications

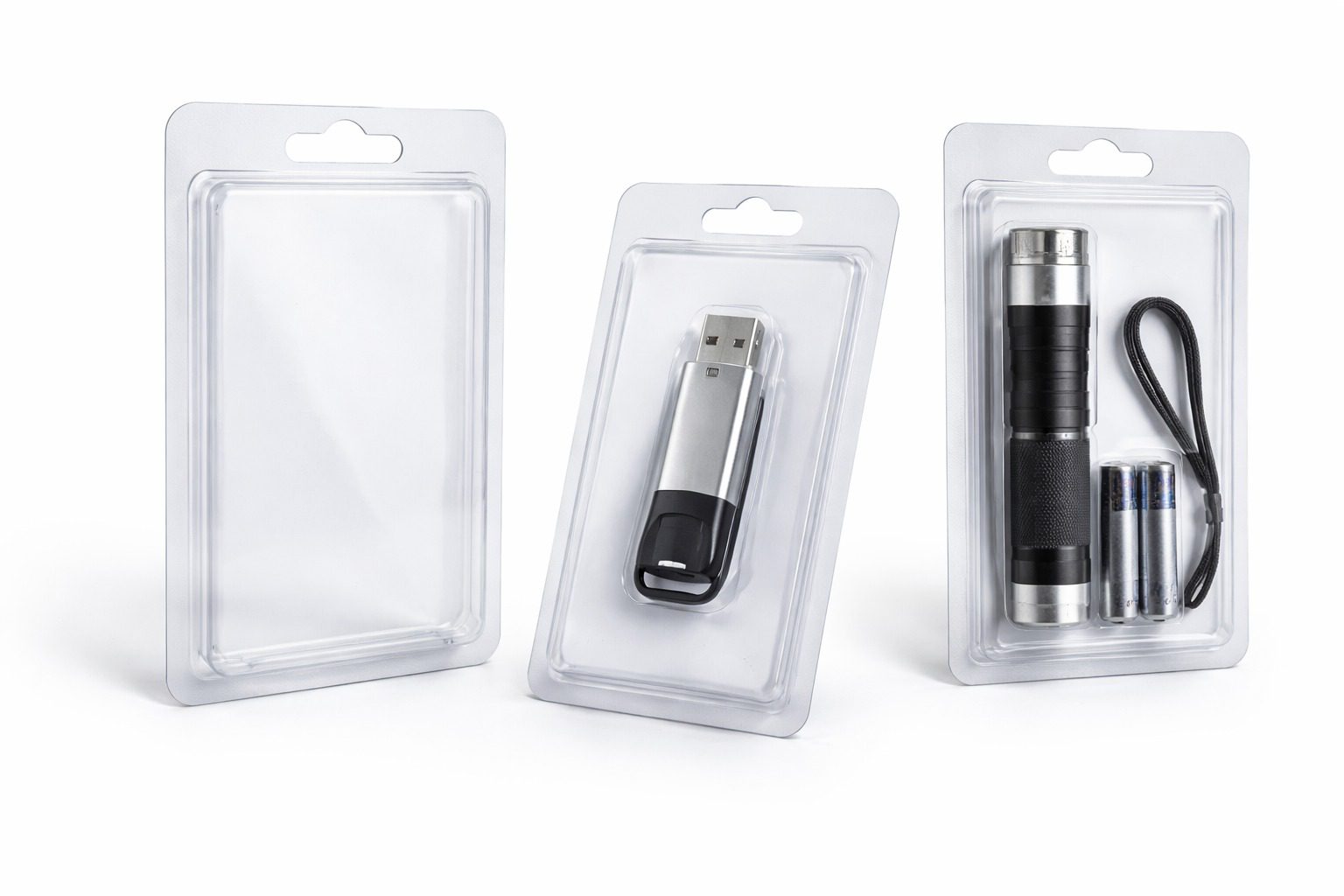

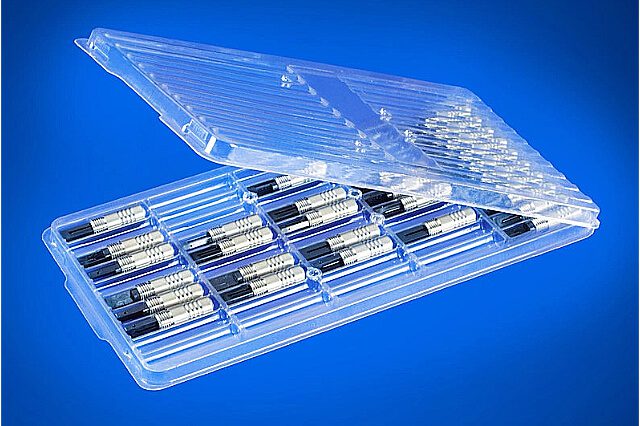

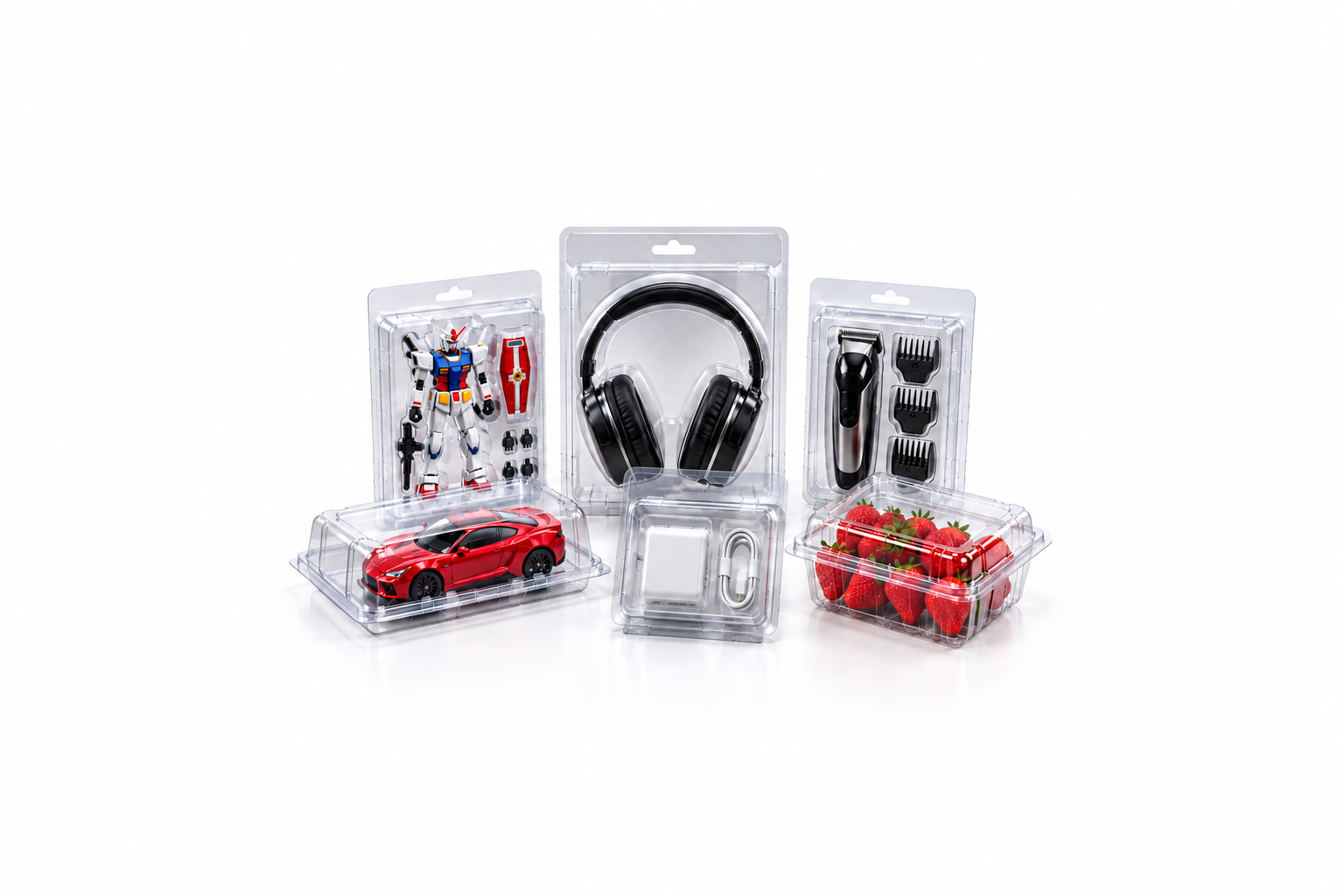

Clamshell packaging is a two-part thermoformed plastic packaging format — a hinged cavity structure that folds closed to enclose and display the product on both sides. Unlike blister packaging (product in cavity sealed against flat foil or film), a clamshell unit is fully formed plastic on both faces — giving 360-degree clear plastic visibility and structural protection without a separate backing material.
Trizen Packaging is a clamshell packaging manufacturer in India producing custom clamshell packaging for retail, consumer healthcare, and industrial applications from in-house CNC thermoforming tooling at our Vapi facility since 2005. Clear clamshell packaging, heat-sealed tamper-evident clamshells, snap-close retail clamshells, and RF/ultrasonic welded security clamshells — all in PVC, PETG, APET, and recycled rPET.
As a clamshell packaging manufacturer in India, we design the complete clamshell unit — cavity geometry, hinge design, locking mechanism, sealing flange profile, Euro-hole for pegboard display, and branding cut-outs — from the product sample and retail display requirement. Custom clamshell packaging prototype in 7 to 14 business days.

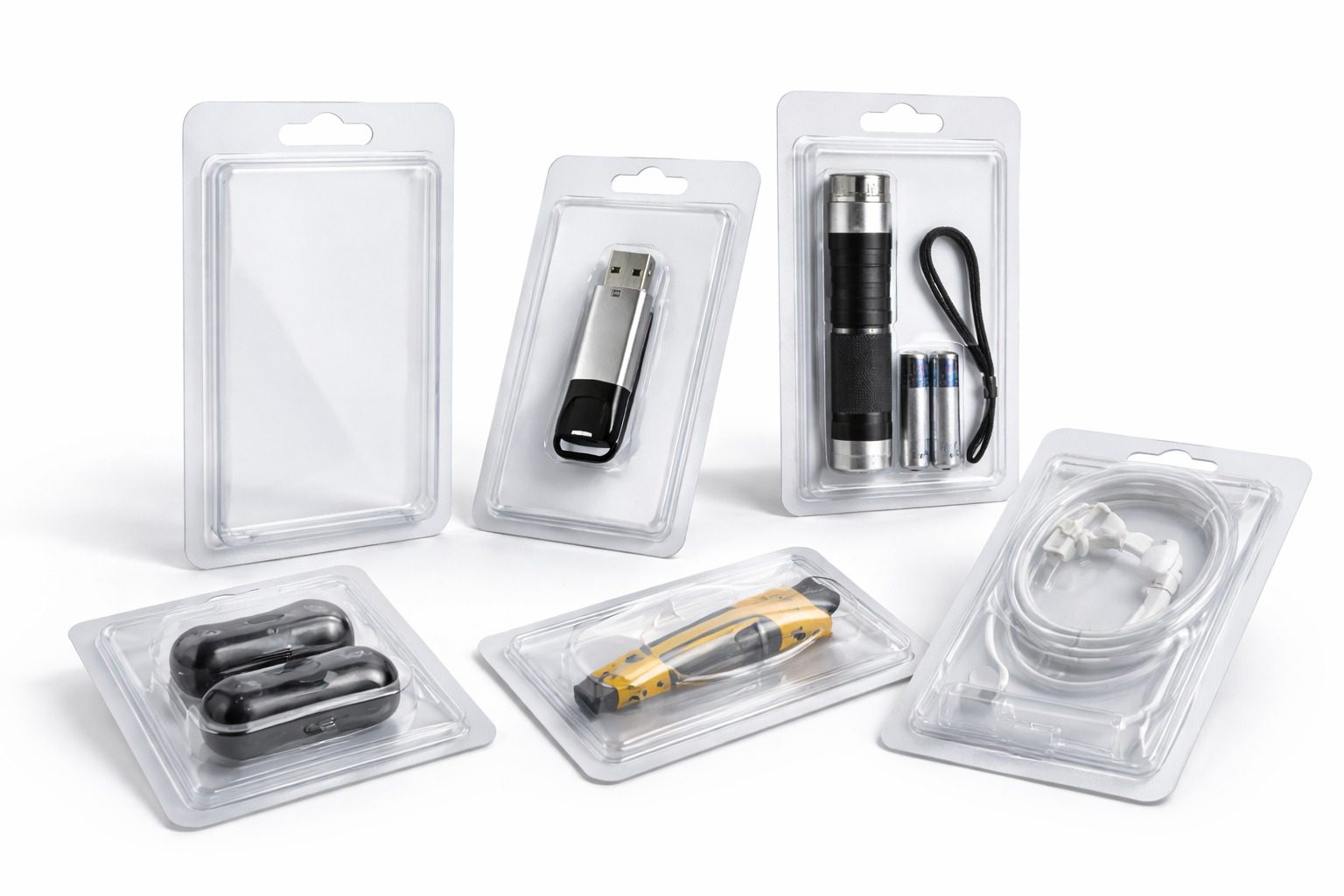

5 Clamshell Packaging Types We Produce
Five distinct clamshell packaging formats — each optimised for a different retail display, security, or product protection requirement:
3 Sealing MethodsHeat Seal, RF/Ultrasonic and Snap-Close
The sealing method determines tamper evidence, opening force, consumer accessibility, and equipment requirement. Choosing the wrong method creates either under-secured packaging or consumer-hostile packaging:
| Sealing Method | How It Works | Tamper Evidence | Consumer Access | Best For |
|---|---|---|---|---|
| Snap-Close Tab Lock | Interlocking thermoformed tabs — no separate sealing operation. Consumer snaps open and closed. | None — fully resealable | Easy — consumer-friendly, no tools | Standard retail where tamper-evidence not required |
| Heat Sealing (Perimeter) | Heat and pressure at 140–180°C on the full sealing flange. Irreversible permanent bond. Seal breakage visible. | High — seal breakage clearly visible | Moderate — scissors/tool typically needed | Pharma OTC, consumer healthcare, premium retail tamper-evident |

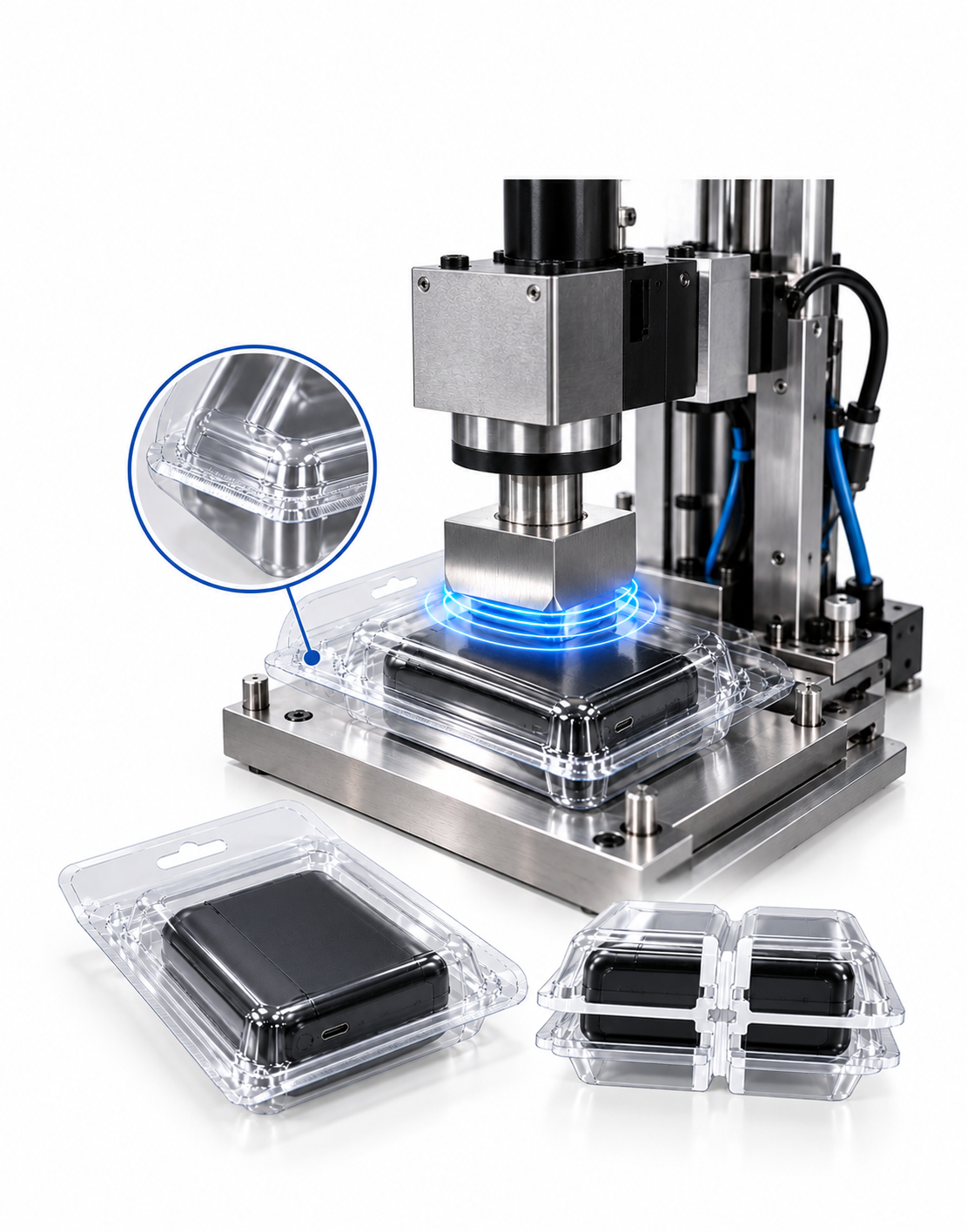

| RF/Ultrasonic Welding | RF electromagnetic energy or high-freq. vibration creates molecular-level weld. Stronger than heat sealing. Permanent. | Maximum — cannot be separated without destruction | Low — cutting tool required | High-value retail, security-critical, industrial components |
Clamshell vs Blister PackagingKey Differences
Clamshell blister packaging and standard blister packaging are frequently confused. The key differences determine which format is correct for the application:
| Criteria | Clamshell Packaging | Blister Packaging |
|---|---|---|
| Structure | Two-part hinged plastic — both faces thermoformed | Single cavity thermoformed plastic + flat lidding (foil/film/Tyvek) |
| Product visibility | 360-degree — all angles through clear plastic | Front-facing only through the cavity |
| Opening | Snap-close (resealable), heat-sealed (tear to open), RF-welded (cut to open) | Push-through foil (pharma), peel-open Tyvek (sterile medical), tear film (retail) |
| Tamper evidence | Available — heat-sealed or RF-welded formats | Available — sealed foil (pharma), Tyvek (medical device) |
| Typical use | Consumer retail, hardware, tools, cosmetics, branded products | Pharmaceutical OSD, sterile medical device, consumer electronics accessories |
| Regulatory context | ISO 9001:2015. CR under PPPA/ISO 8317 for specific OTC pharma. | Pharma: GMP/Schedule M/FDA. Medical device: ISO 11607/Cleanroom Class 8. |
Industries and ApplicationsClamshell Packaging Across Sectors
| Industry | Application | Clamshell Format | Sealing |
|---|---|---|---|
| FMCG Retail | Retail clamshell packaging Gujarat — shelf and pegboard display for FMCG consumer products, household goods, personal care accessories. | Hinged snap-close or heat-sealed with header card | Snap-close or heat-sealed |
| Electronics | Clear clamshell packaging for cables, earphones, mobile accessories, USB hubs. Maximum product visibility for retail display. | Full-face clear PETG or clamshell blister with card | Snap-close or heat-sealed |
| Hardware & Tools | Security retail packaging for drill bits, cutting tools, fixings, and hardware accessories. RF-welded for high-theft item protection. | RF-welded heavy-gauge security clamshell | RF-welded |
| Cosmetics | Full-face APET/PETG clamshell for cosmetic accessories, makeup brushes, hair accessories, and premium beauty retail. | Full-face clear PETG clamshell | Snap-close or heat-sealed |
| Toys & Stationery | Toy packaging clamshells, stationery product clamshells, school supply display packaging. Easy-open snap-close formats. | Hinged snap-close with header card | Snap-close |
| Consumer Healthcare | Tamper-evident clamshell for OTC healthcare products — bandages, supports, diagnostic aids. Heat-sealed for pharmacy retail. | Heat-sealed tamper-evident clamshell | Heat-sealed full perimeter |
| ️ Industrial | Clamshell packaging for light industrial components, electronic modules, precision parts retail. RF-welded for security. | RF-welded or heat-sealed industrial clamshell | RF-welded or heat-sealed |
Clamshell Packaging Design Key Design Requirements
Click for full photo
01 / Clamshell control

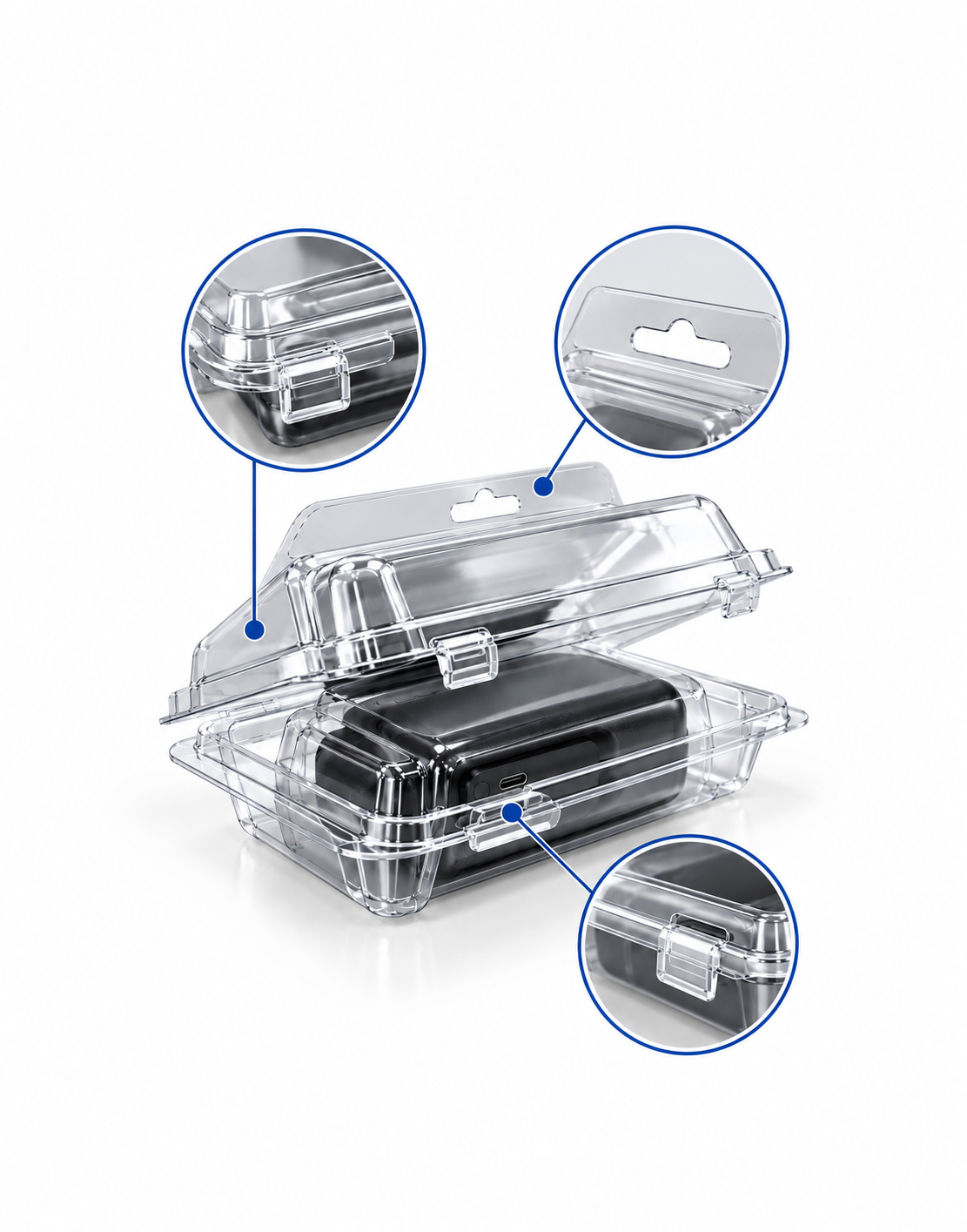

Snap-Close Tab Lock
Interlocking thermoformed tabs — no separate sealing operation. Consumer snaps open and closed. — None — fully resealable
Why Choose a Clamshell Packaging Manufacturer in India?
What makes Trizen the right clamshell packaging manufacturer for retail, commercial, and industrial clamshell programmes:
Frequently Asked QuestionsTrizen manufacturing capabilities
A clamshell packaging manufacturer in India like Trizen Packaging produces two-part hinged thermoformed plastic packaging for retail and product protection — including snap-close retail clamshells, heat-sealed tamper-evident clamshells, clamshell blister packaging with header card, full-face clear clamshells, and RF/ultrasonic welded high-security clamshells. Materials: PVC, PETG, APET, and recycled rPET. All from custom CNC tooling at Vapi.
Clamshell blister packaging combines a deep thermoformed clamshell cavity with a flat backing card or blister base. The product is enclosed in the clear clamshell cavity; the backing card carries branding, barcode, and retail display information. Unlike standard blister packaging (cavity sealed directly with foil or Tyvek), clamshell blister packaging uses a formed plastic front with a flat card or plastic back — giving both product visibility and retail display functionality. Euro-hole standard for pegboard display.

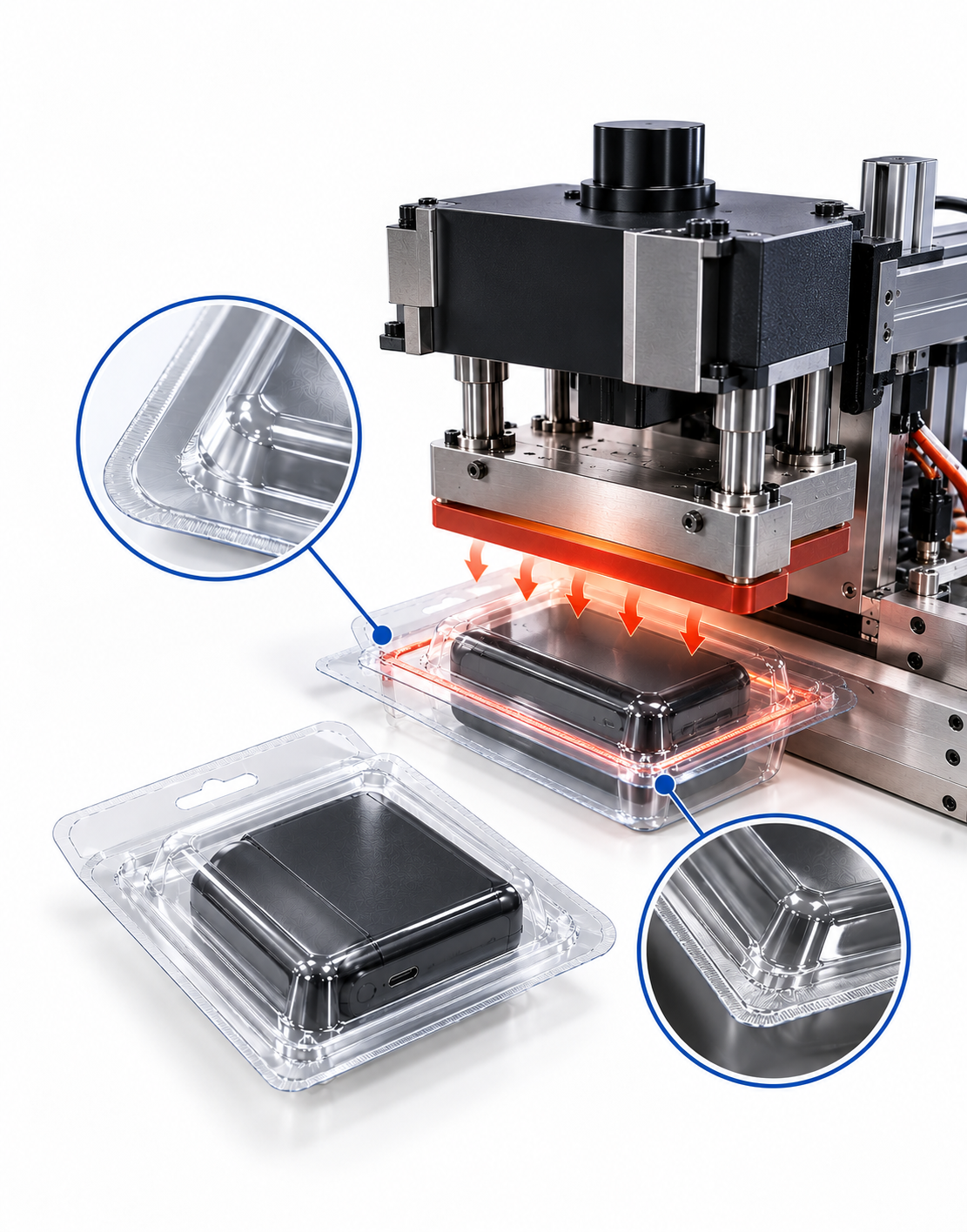

Snap-close clamshell uses interlocking thermoformed tabs — no heat or equipment required, consumer-resealable, not tamper-evident. Heat-sealed clamshell uses heat and pressure (140–180°C) to create a permanent perimeter seal — irreversible, tamper-evident, requires a heat sealing machine on the packaging line. Snap-close for standard retail. Heat-sealed where tamper evidence is required (pharmaceutical OTC, consumer healthcare).

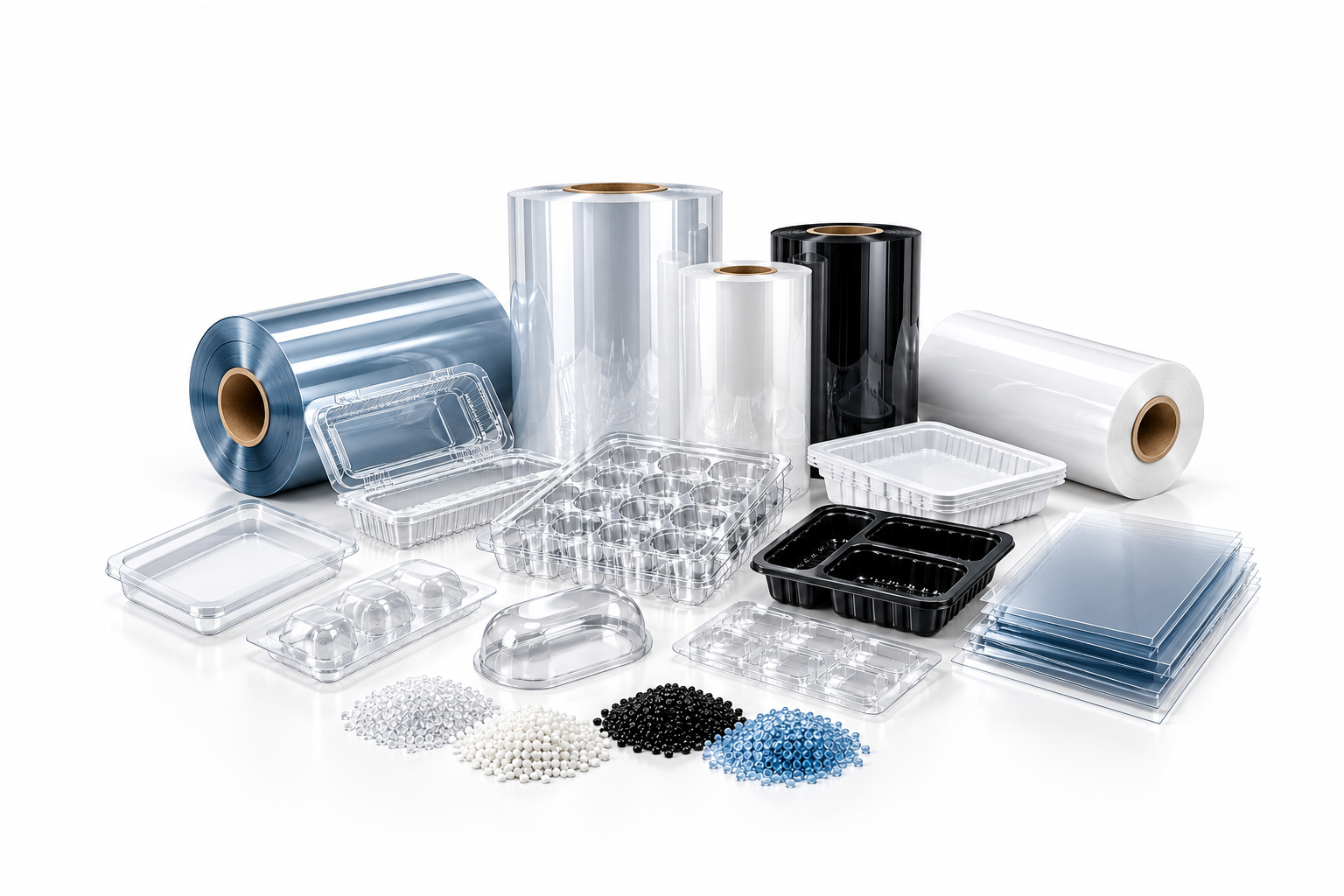

PVC (standard, most cost-efficient), PETG (high clarity, premium surface finish, good impact resistance), APET (maximum optical clarity, food-contact grade available), and recycled rPET (30–100% PCR content for sustainability and EPR compliance). PVC for standard retail. PETG and APET for premium clear clamshell packaging where product presentation is priority.
Get a Clamshell Packaging Quote from Vapi, India
Submit your product sample and retail display requirement. Our team designs the clamshell specification — including sealing method recommendation — and responds within 24 business hours.
