Thermoforming Packaging Manufacturer Vapi GujaratCustom Sterile Trays, Blisters and Industrial Packaging
Custom thermoforming packaging for medical, pharmaceutical, automotive and commercial industries since 2005. In-house CNC tooling at Vapi — prototype in 7 to 14 business days.
The Sourcing Challenge Every Packaging Buyer Faces in India
Procurement managers and quality engineers sourcing thermoforming packaging in India encounter the same three problems — and each adds weeks, cost, or compliance risk to the programme:
Trizen Packaging is a thermoforming packaging manufacturer in Vapi, Gujarat built specifically to solve all three problems from a single facility. In-house CNC tooling eliminates the outsourced delay — prototypes in 7 to 14 business days. Validated Cleanroom Class 1,00,000 (Class 8), GMP, and ISO 9001:2015 certificates cover regulated and commercial packaging from the same production floor.
As a thermoforming packaging manufacturer in Vapi, we eliminate the three most common sourcing failures in a single relationship. One supplier qualification, one documentation package, one team — for everything from sterile medical device trays to FMCG retail display packaging.
Our Thermoforming Packaging SolutionsProcess and Formats
Custom thermoforming packaging converts thermoplastic sheet into precision rigid and semi-rigid packaging by heating it to forming temperature and drawing it against a CNC mould. The output is packaging engineered to the exact geometry of the product it protects — not a standard size, not a repurposed mould. Every mould at Trizen Packaging is designed and fabricated in-house at Vapi.
| Stage | What Happens | Control Point |
|---|---|---|
| Heat | Sheet heated to forming temperature. Infrared/ceramic elements controlled per material specification for uniform heat distribution across the forming area. | Sheet temperature uniformity critical for cavity depth consistency. |

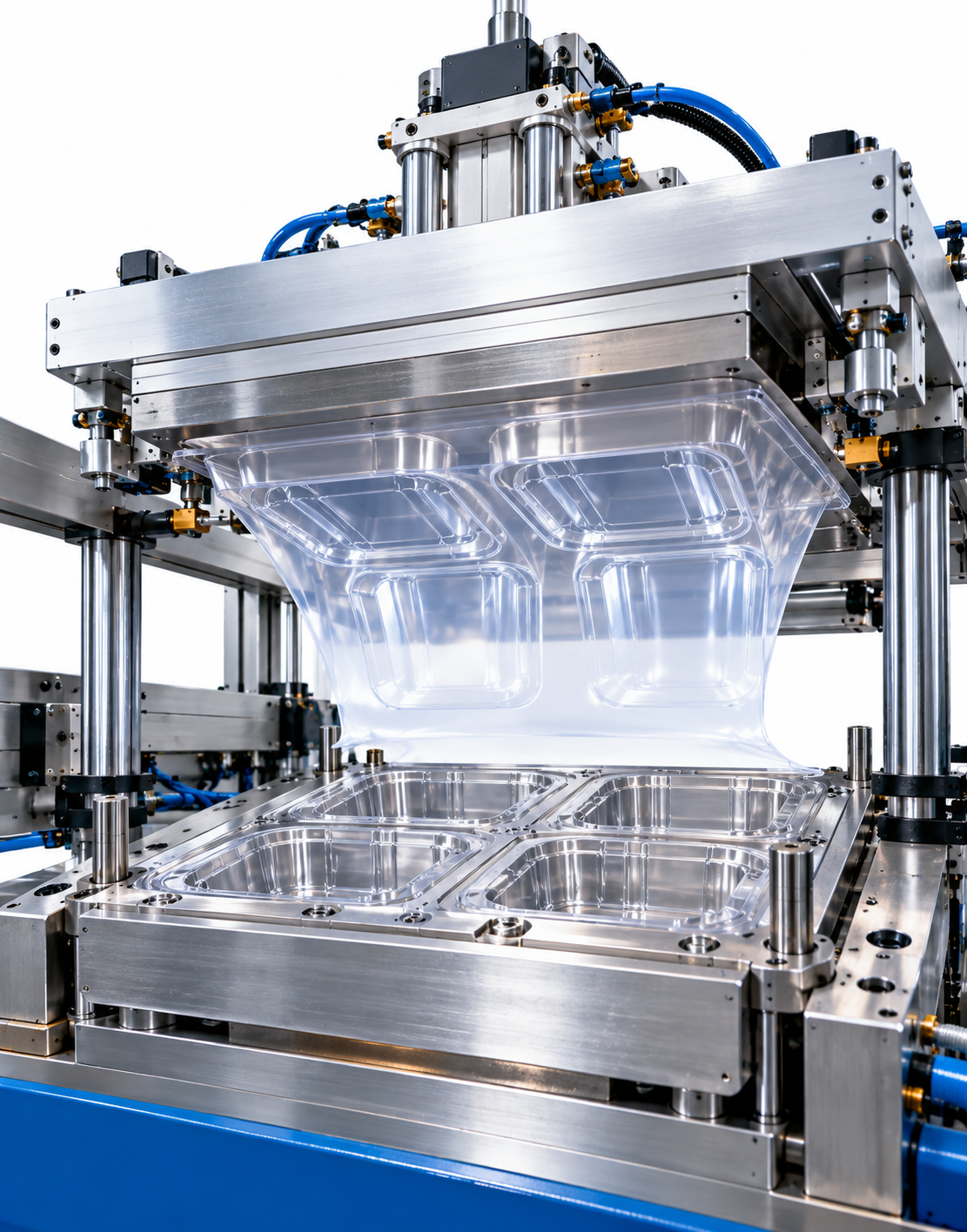

| Form | Vacuum forming (~1 bar): standard geometries, cost-efficient volume. Pressure forming (4–11 bar combined): precision cavities, fine detail, sharp corners, deep-draw wall thickness consistency. | Process selected from geometry, draw depth, and tolerance requirement. |

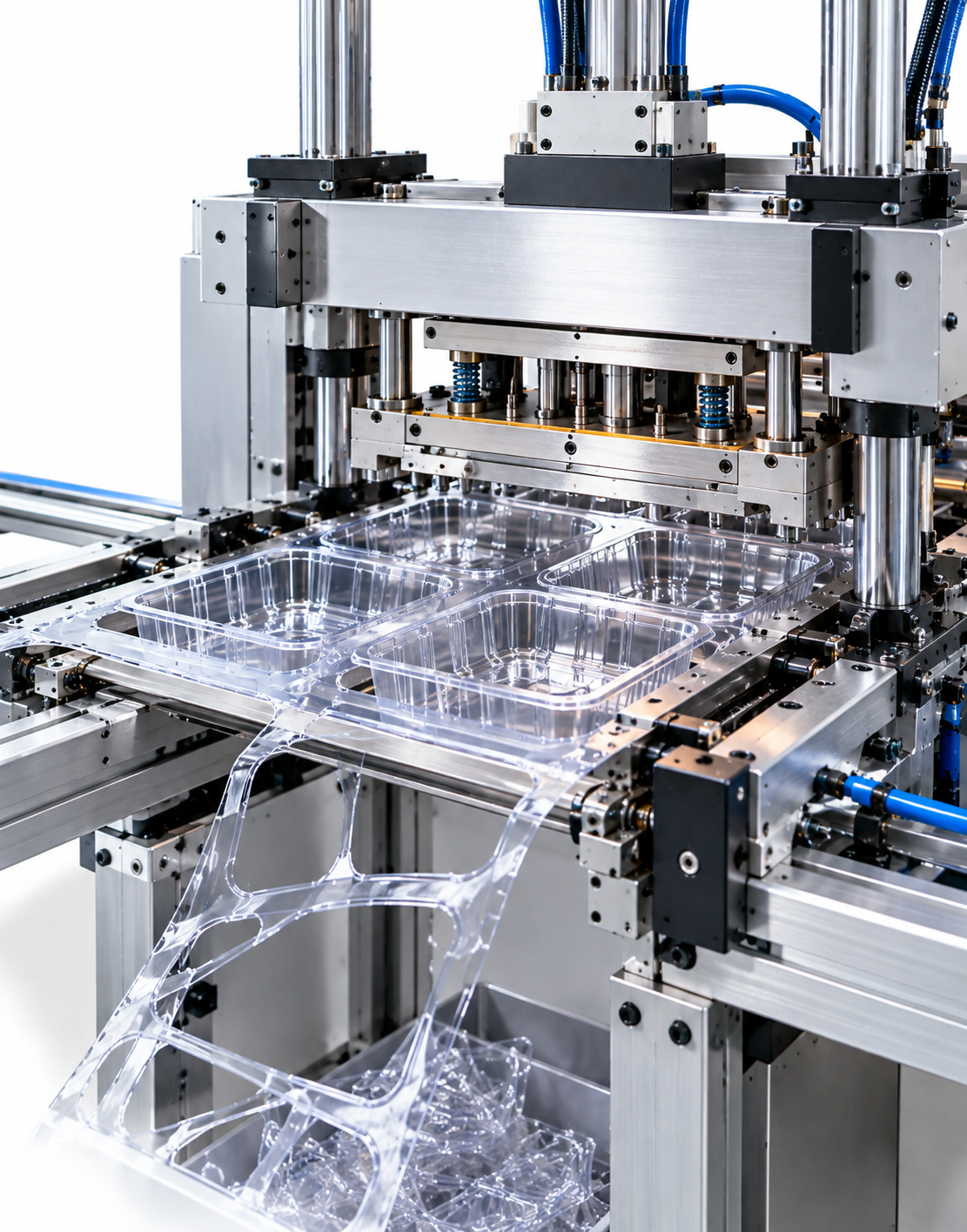

| Trim | Formed sheet trimmed to individual part outline. Web removed. Trim accuracy determines edge quality and dimensional conformity. | Trim tool accuracy across entire production batch. |

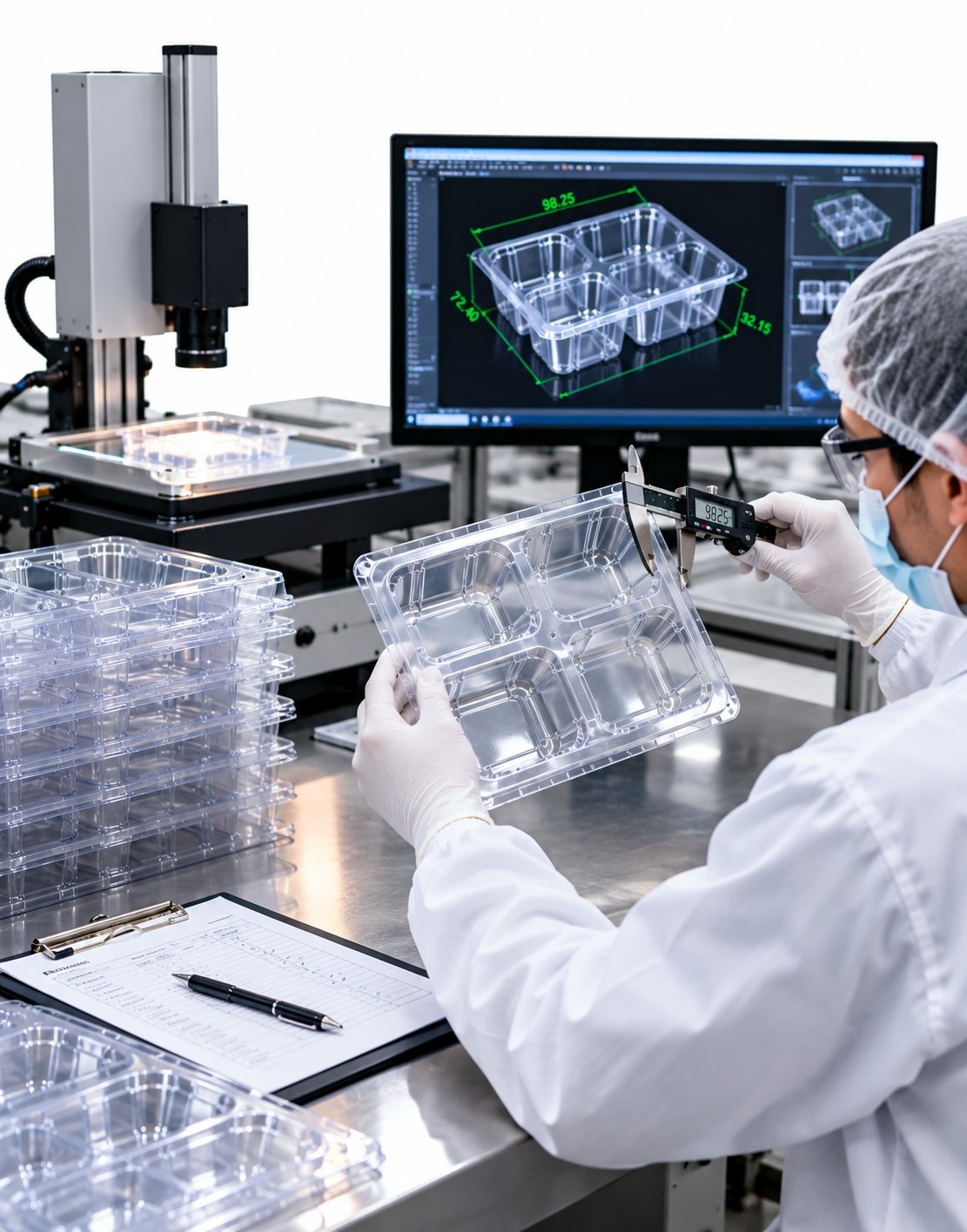

| Inspect | Dimensional inspection against design spec. GMP batch records completed for regulated programmes — batch number, material lot, process parameters, QC results. | Dimensional records. GMP batch records for regulated packaging. |
Materials in Stock at Our Vapi Facility
8 core thermoforming grades in stock — medical-grade, food-contact, and ESD-modified variants available. Material COAs provided per regulated production batch.
| Material | Grade | Clarity | ETO | Gamma | Application |
|---|---|---|---|---|---|
| PP — Polypropylene | Std · Medical · Food | Translucent | ✓ | ✓ | Medical trays, pharma, automotive, food produce, industrial |
| PETG | Std · Medical | High clarity | ✓ | ✓ | Sterile medical trays, pharma blister, cosmetics, electronics |
| APET | Std · Food | Max clarity | Ltd | ✓ | Premium cosmetic packaging, luxury gift set inserts |
| PVC | Std · Pharma | High clarity | ✓ | Ltd | Pharmaceutical blister, retail blister, clamshells |
| PVDC | Pharma | High clarity | ✓ | Ltd | High-barrier pharma blister for moisture-sensitive drugs |
| HIPS | Standard | Opaque/matte | ✗ | ✗ | Industrial trays, machinery covers, large-format packaging |
| ABS | Premium | Opaque, premium | ✗ | ✗ | Equipment enclosures, machinery casing, power tool packaging |
| ESD PP/PETG | Antistatic · Cond. | ESD standard | ✓ | ✓ | Electronic trays, PCB packaging, sensor/ECU packaging |
Industry ApplicationsHow We Have Solved It Across Sectors
Thermoforming tray manufacturing at Trizen Packaging spans the full regulated and commercial spectrum. Each industry has different requirements — here is how we solve the packaging challenge for each:
| Industry | Problem Solved | Format Produced | Environment | Documentation |
|---|---|---|---|---|
| Medical Devices | Sterile device packaging with exact cavity geometry. ETO/Gamma compatible. Aseptic peel-open for clinical use. | Sterile blister trays, peel-open device trays, surgical instrument trays | Cleanroom Class 8 + GMP | Cleanroom cert, env. monitoring, GMP batch records, COAs |
| Pharmaceutical | GMP-validated blister packaging for tablets, capsules, injectables. CR and tamper-evident formats. | Blister packs (PVC/PVDC/APET), syringe trays, diagnostic kits, sample kits | GMP Validated | GMP batch records, COAs, in-process QC, outgoing inspection |
| Automotive | Precision assembly line trays at exact component positions for robotic and manual assembly. ESD-safe electronic component protection. | Assembly line trays, mechanical parts packaging, ESD-safe sensor/ECU trays | ISO 9001:2015 | Dimensional inspection, material batch documentation |
| Cosmetics & Baby Care | Premium high-clarity APET/PETG inserts at luxury brand quality. BPA-free for baby care. | Perfume inserts, makeup kit trays, gift set trays, feeding bottle trays | ISO 9001:2015 | Batch records, dimensional inspection per order |

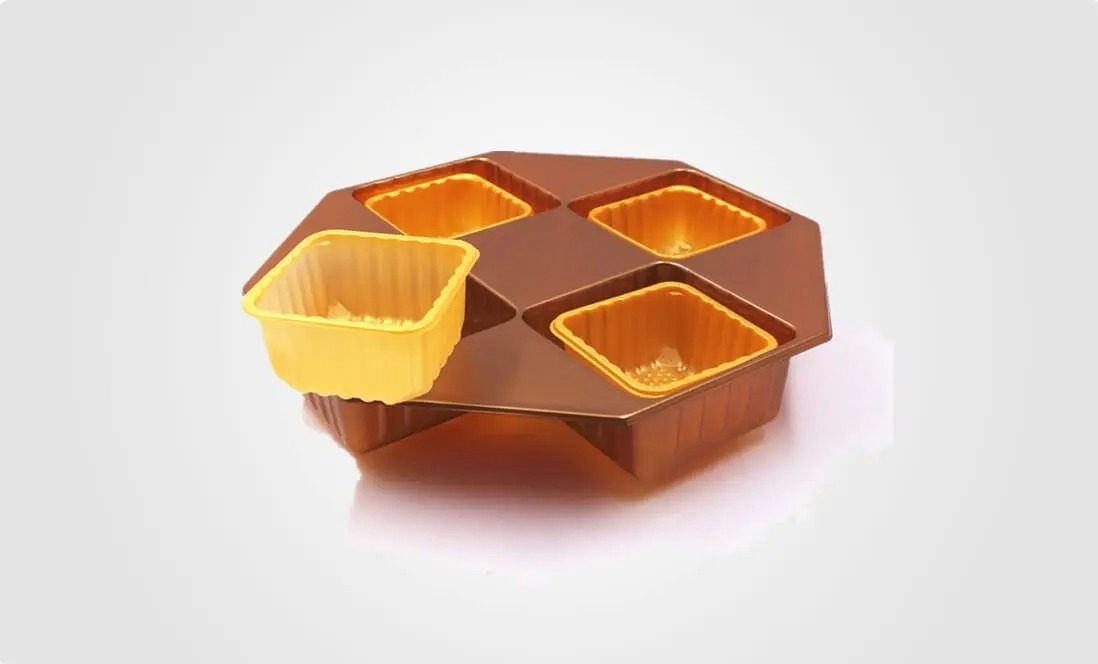

| FMCG | Retail display packaging for large FMCG brand programmes — confectionery gift trays, CDUs, shelf-ready formats. | Confectionery gift trays, shelf-ready packaging, counter display units | ISO 9001:2015 | Batch records, dimensional inspection |

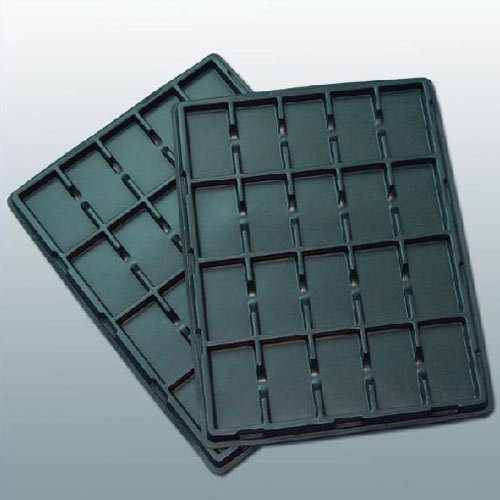

| Electronics | ESD-safe protection for sensitive electronic components from static discharge during transit, storage, and automated assembly. | ESD-safe trays (antistatic + conductive), PCB packaging, connector trays | ISO 9001:2015 · ESD | ESD material cert, dimensional records |
| Industrial | Heavy-gauge equipment enclosures and machinery casing in PP and ABS. 3mm to 8mm structural packaging. | Equipment enclosures, machinery casing, power tool packaging | ISO 9001:2015 | Structural + dimensional inspection, batch docs |
Thermoforming Packaging Design Key Design Requirements
Click for full photo

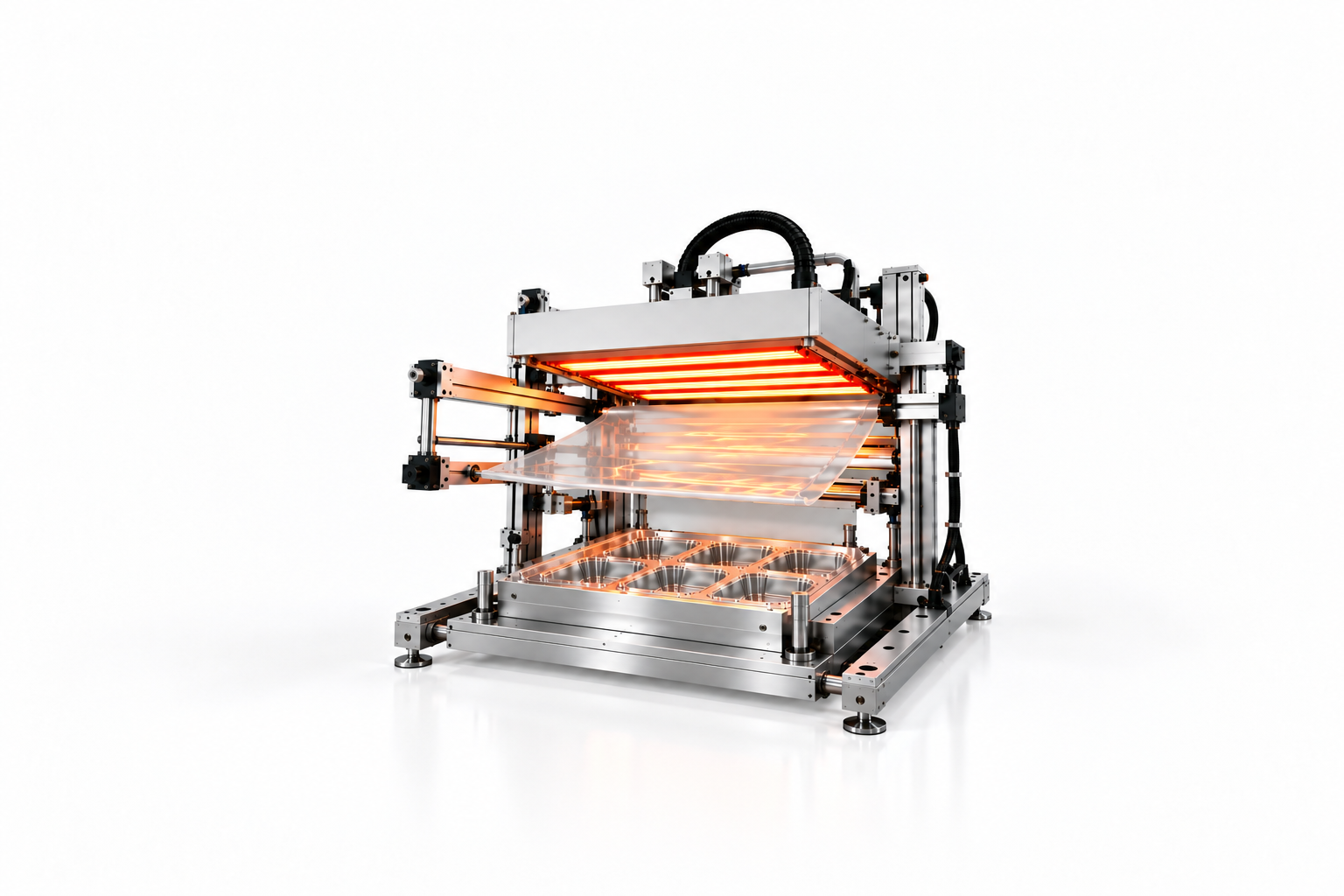

01 / Thermoforming control
Heat
Sheet heated to forming temperature. Infrared/ceramic elements controlled per material specification for uniform heat distribution across the forming area. — Sheet temperature uniformity critical for cavity depth consistency.
Why Choose a Thermoforming Packaging Manufacturer in Vapi, Gujarat?
What distinguishes Trizen as a thermoforming packaging manufacturer is the combination of regulated industry infrastructure and commercial manufacturing efficiency — rarely found in the same Indian facility:
Market InsightsThermoforming Packaging Industry
Frequently Asked QuestionsTrizen manufacturing capabilities
A thermoforming packaging manufacturer in Vapi, Gujarat like Trizen Packaging produces rigid and semi-rigid plastic packaging — custom product trays, pharmaceutical blister packs, retail clamshell packs, protective inserts, and heavy-gauge industrial enclosures. Every tray is moulded to the specific geometry of the product it holds using CNC tooling designed for that product — not a generic standard mould adapted from a catalogue.
Vacuum forming uses ~1 bar atmospheric vacuum to draw the heated sheet against the mould — for standard geometries, moderate draw depths, and cost-efficient volume. Pressure forming adds compressed air (4–11 bar combined) driving the sheet into fine mould detail, sharp corners, and consistent deep-draw wall thickness. Both processes are operated in-house at Vapi. Process is recommended from your product geometry and tolerance requirement.
7 to 14 business days from product sample to first physical prototype — including cavity design, CNC mould fabrication at Vapi, and dimensional inspection. All tooling in-house. No outsourced delays. Typically 2 to 4 weeks faster than manufacturers using outsourced tooling.
Yes. Trizen Packaging holds validated Cleanroom Class 1,00,000 (Class 8) and GMP certificates — both in documented form, available for supplier qualification before order placement. The complete three-certificate package (Cleanroom Class 8, GMP, ISO 9001:2015) covers all regulated packaging supplier qualification requirements.
Ready to Solve Your Thermoforming Packaging Challenge?
Submit your product sample or brief. Our team at Vapi responds within 24 business hours — process recommendation, material selection, and indicative tooling cost included.
