Sensor & Electrical Component Packaging Manufacturer IndiaESD-Safe Automotive Packaging, Bulk from Vapi

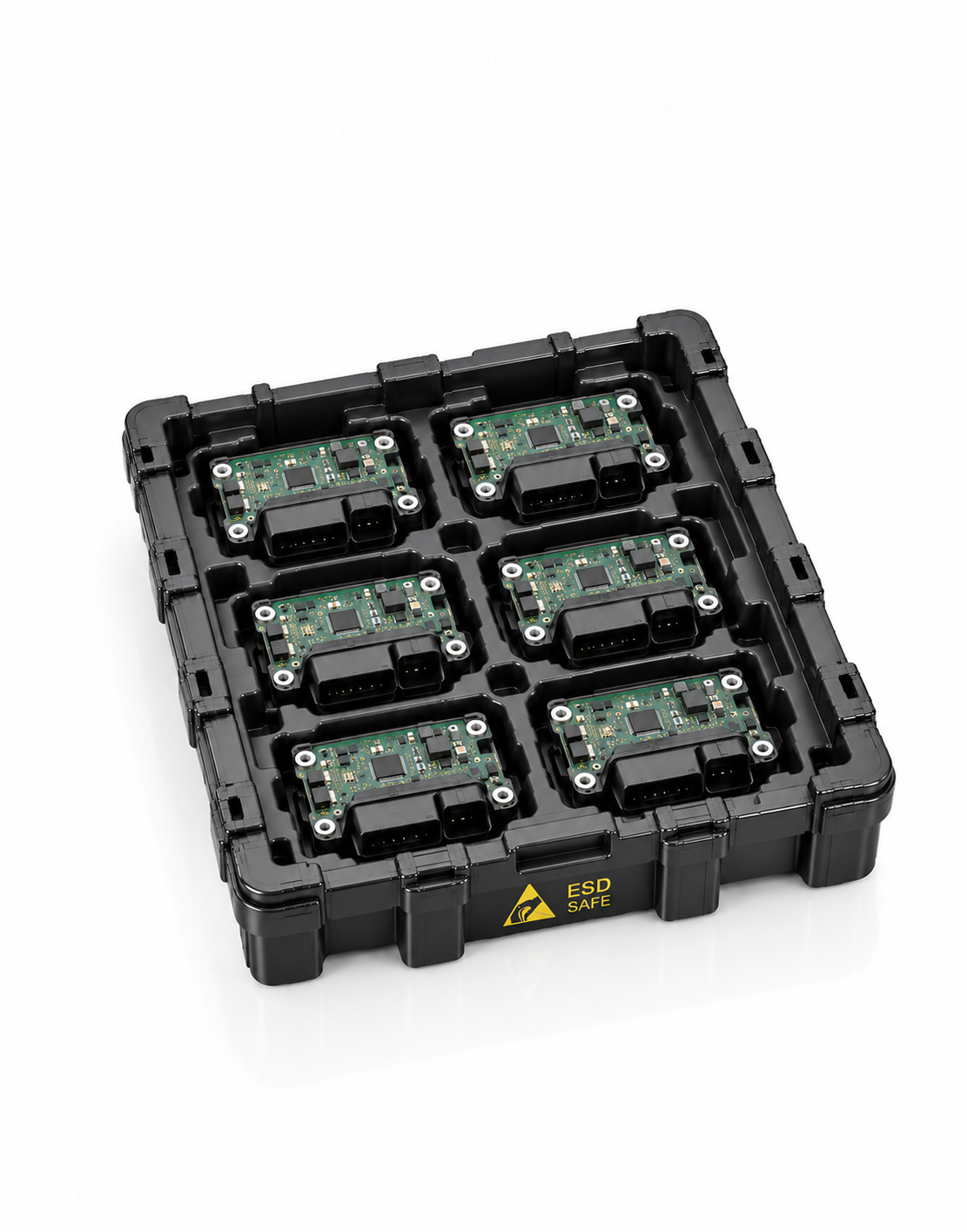

ESD-safe packaging uses materials with controlled surface resistivity — typically 10⁶ to 10⁹ Ω/sq — that dissipate electrostatic charge rather than allowing it to accumulate and discharge through the sensor or electronic component. Automotive sensors and ECUs can sustain permanent damage from ESD at voltages as low as 30V — imperceptible to human touch but permanently damaging to microelectronics. ESD damage that passes visual inspection manifests as field failure after vehicle delivery — the most expensive automotive failure mode to trace. ESD-safe packaging eliminates the source of this risk.

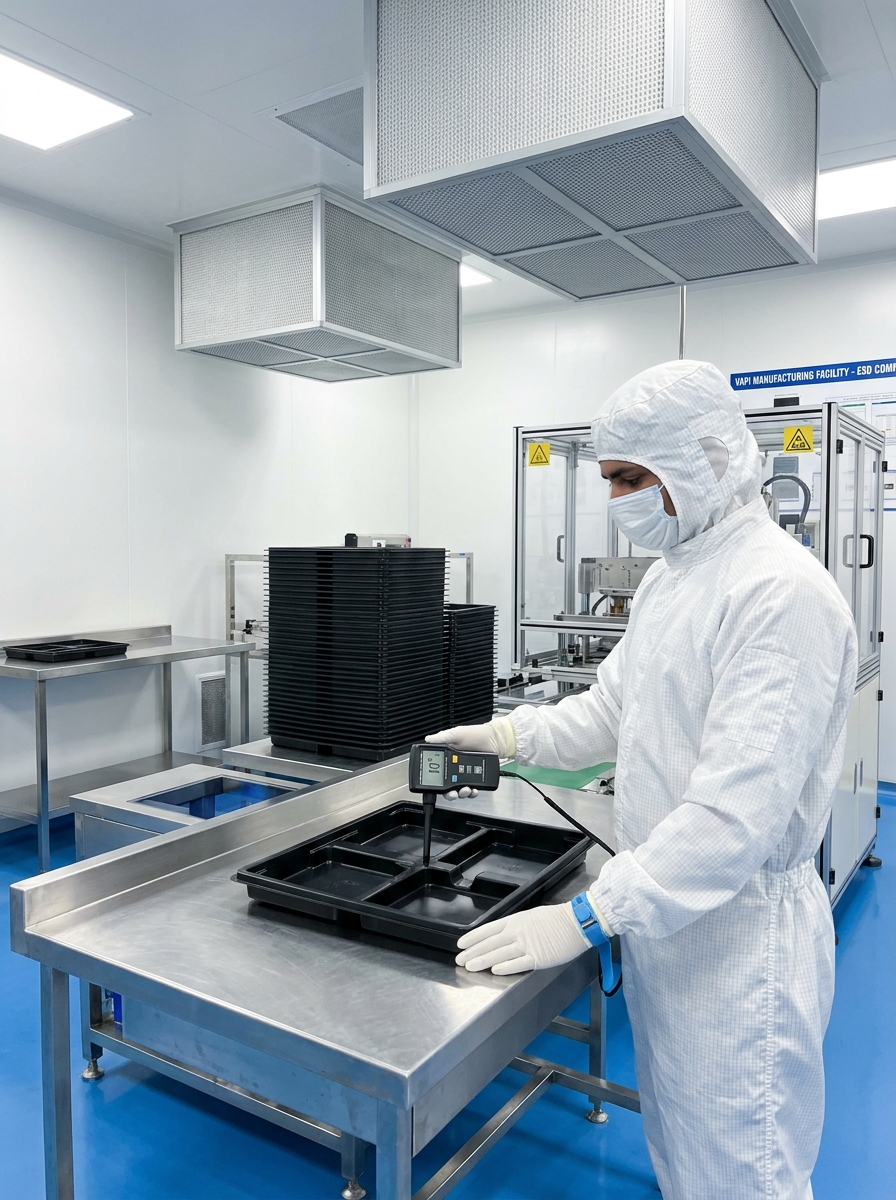

ESD-safe PP and ESD-safe PETG have controlled surface resistivity in the dissipative range — typically 10⁶ to 10⁹ Ω/sq. This range dissipates charge slowly enough to prevent rapid discharge current through the component while preventing charge accumulation. Surface resistivity is confirmed per material batch by CoA. Batch CoA available for automotive OEM and Tier 1 supplier qualification review. For specific ESD packaging standards compliance (ANSI/ESD S541, IEC 61340-5), the material specification is confirmed at brief stage.

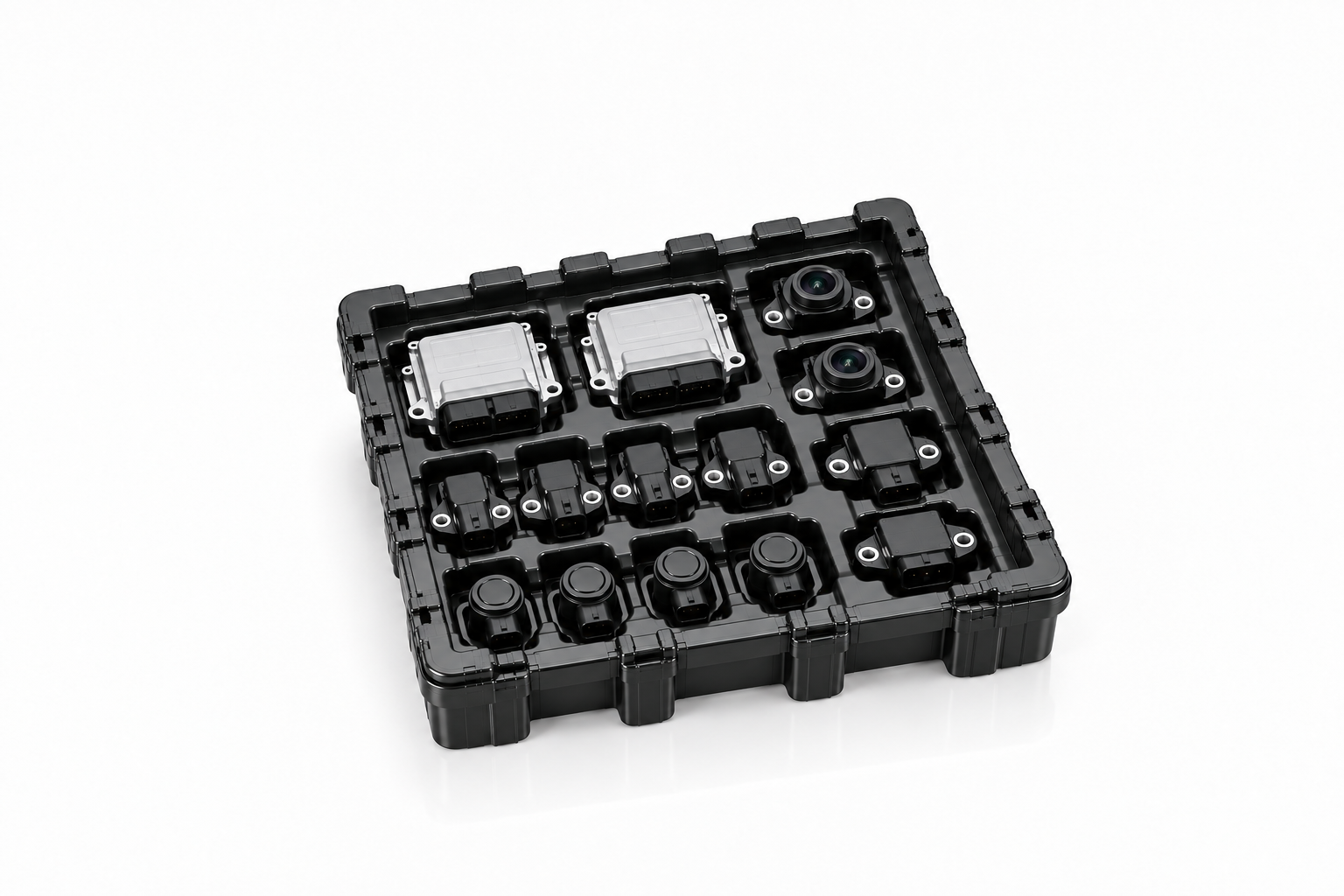

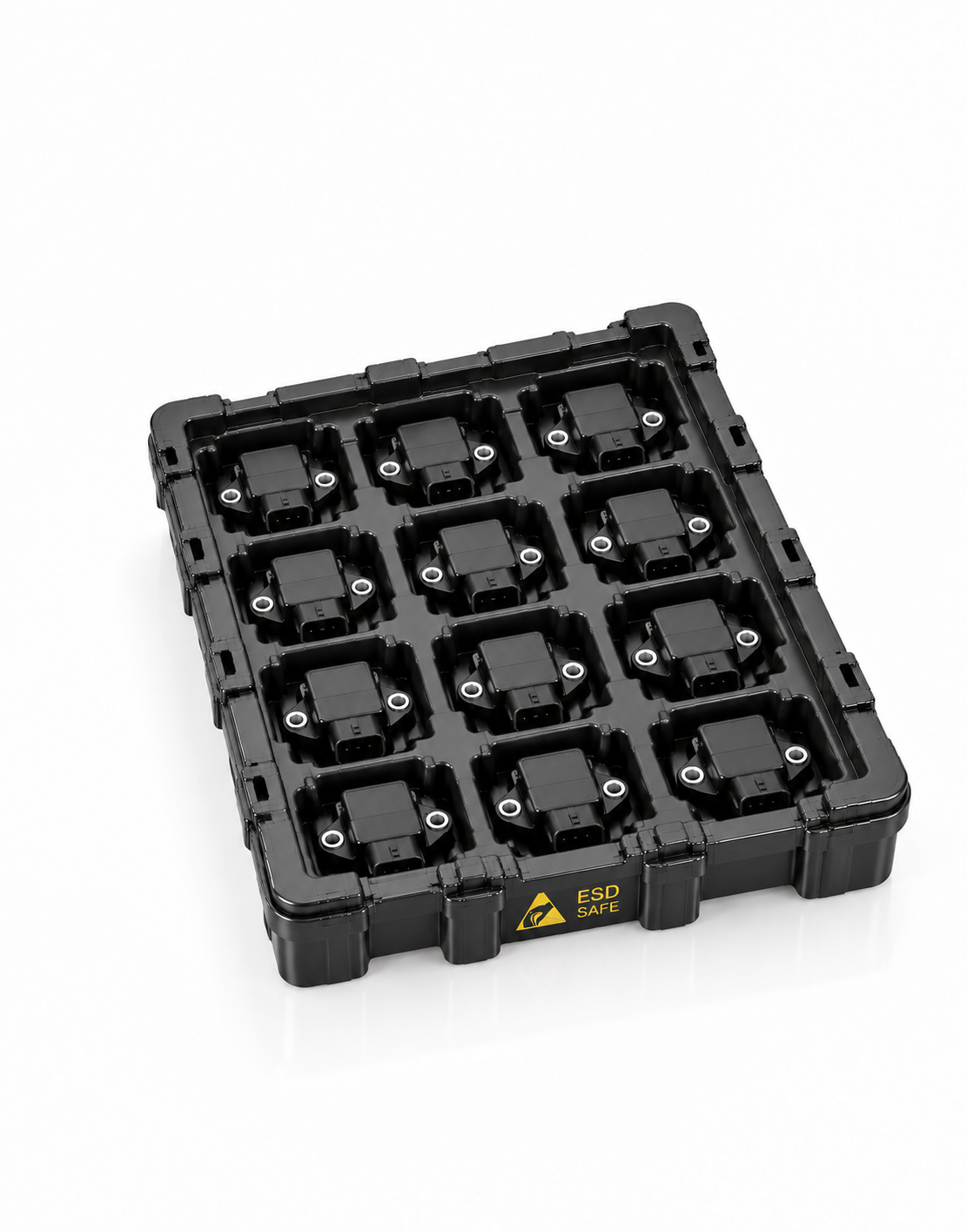

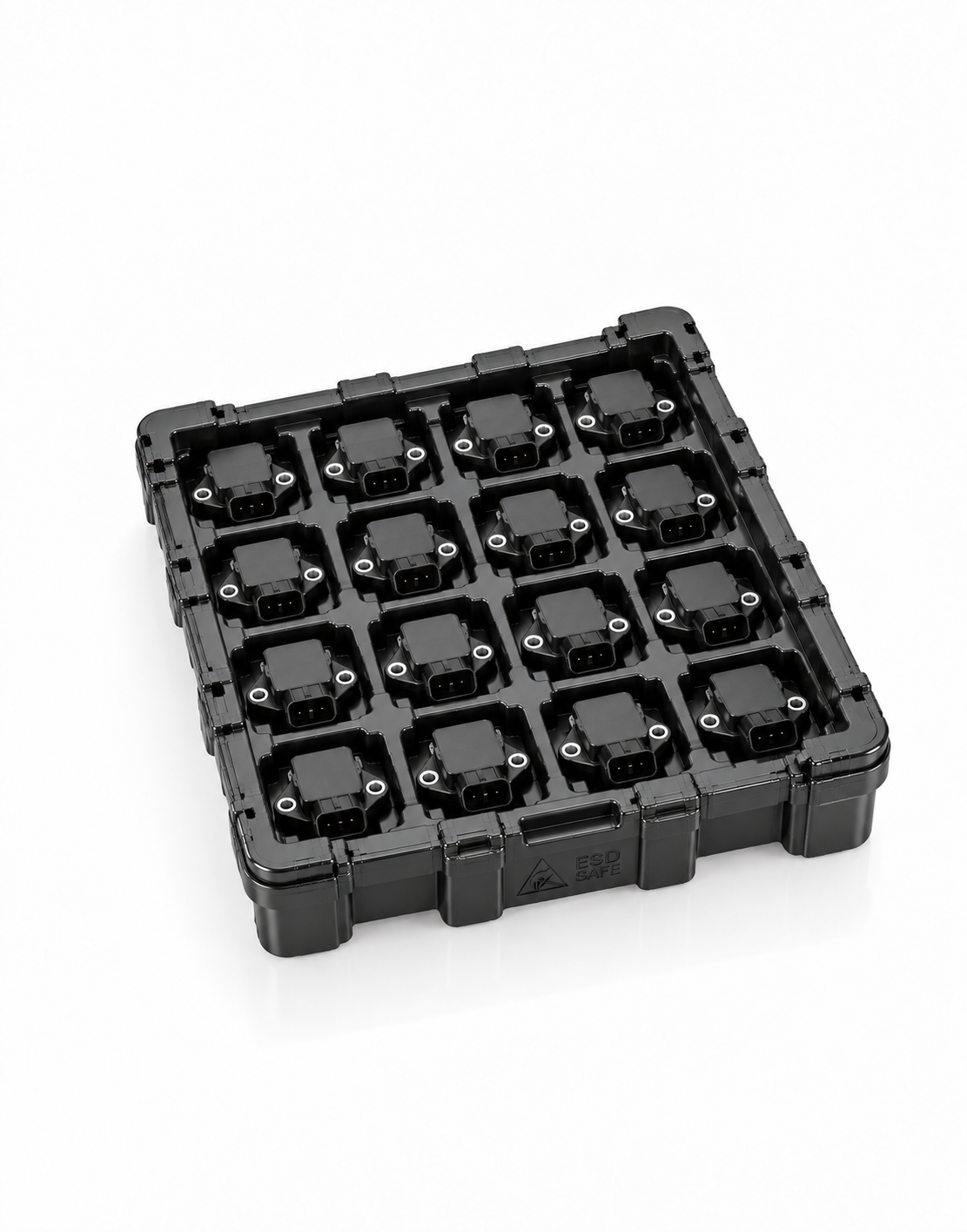

Electrical component trays from Vapi for automotive OEM programmes across India's automotive electronics manufacturing hubs. As an automotive sensor packaging manufacturer from India, Trizen Packaging supplies ESD-safe automotive packaging for both domestic and export programmes. All tooling in-house at Vapi — no external delays, same geometry on every repeat production run. ISO 9001:2015 batch documentation and surface resistivity CoA per run.

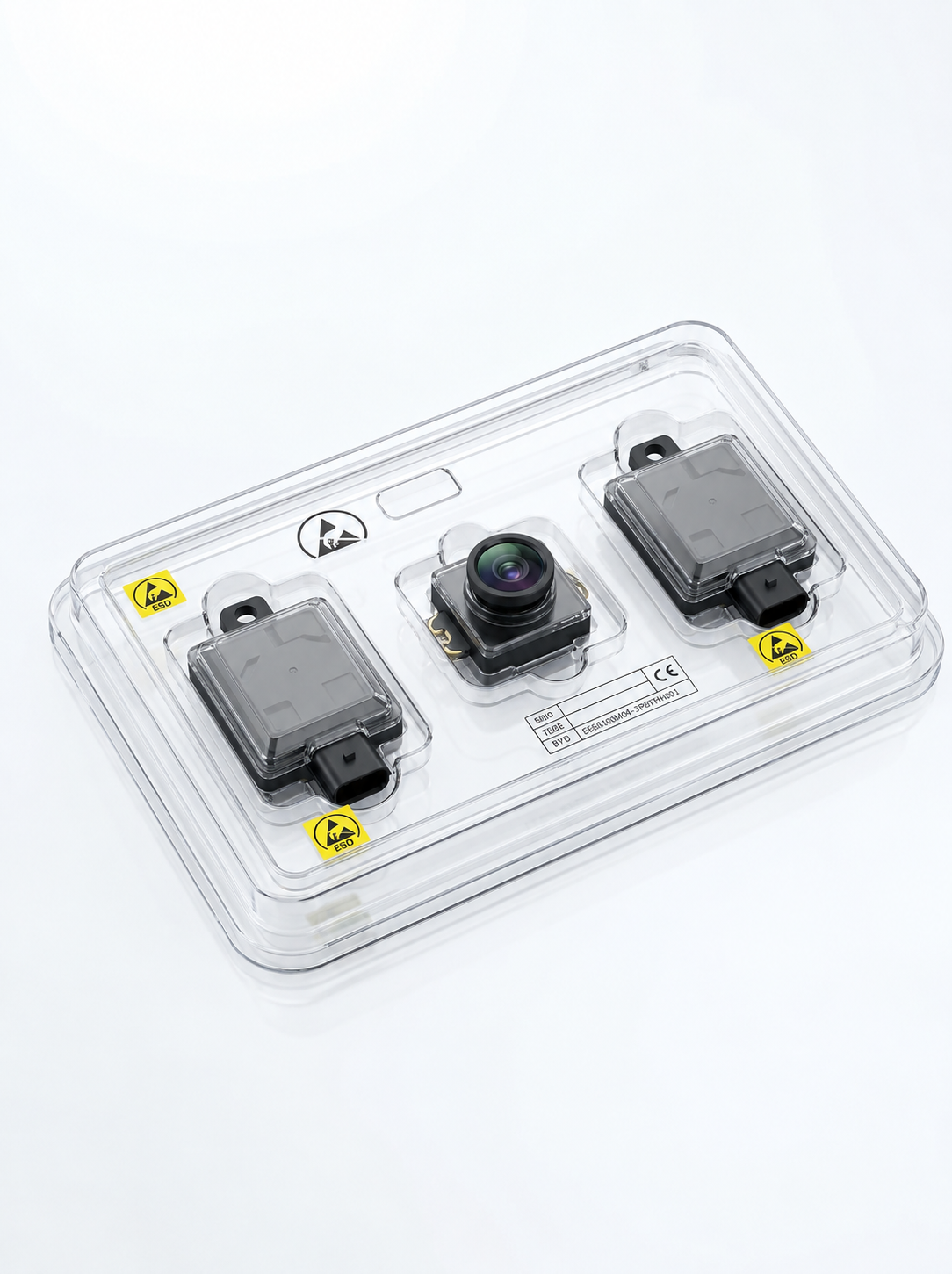

ADAS radar and camera sensors have optical surfaces — radar antenna arrays and camera lens housings — requiring optical surface clearance (≥1mm no-contact zone) and zero particulate contamination. Standard ESD-safe PP provides the ESD protection but not optical clarity for inspection. ESD-safe PETG provides both ESD protection and crystal clarity — the sensor can be inspected through the closed packaging. Optical surface clearance geometry is confirmed from the sensor technical specification before tooling.

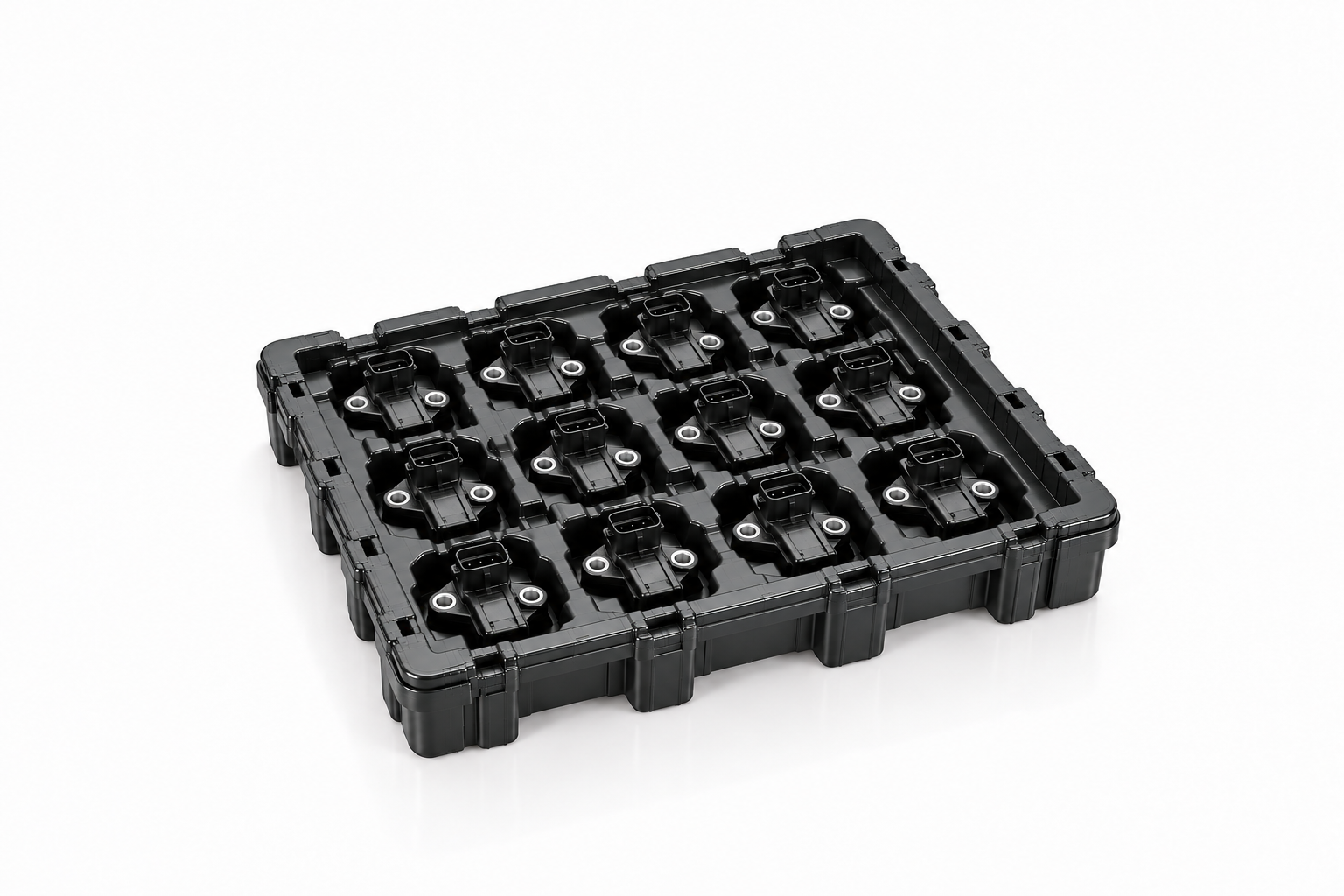

ESD-safe packaging addresses electrostatic risk. Mechanical shock protection is provided by cavity geometry — the component is held in a precise cavity that prevents movement within the packaging during transit vibration and impact. ESD-safe PP and PETG have good impact resistance at the gauge thickness used for sensor packaging. For sensors in particularly shock-sensitive applications, shock-absorbing foam inserts can be integrated with the thermoformed cavity tray.

Prototype: 7 to 14 business days from device sample or technical drawing — in-house CNC tooling at Vapi. MOQ from 500 units. Sustained OEM from 5,000 units per run. Surface resistivity test certificates and ISO 9001:2015 batch documentation per production run.

Surface resistivity test certificate per material batch, ISO 9001:2015 certificate copy, material CoA per production batch, dimensional inspection records per production batch, and batch records per production run. All documentation available for automotive OEM and Tier 1 supplier ESD packaging qualification programmes.
