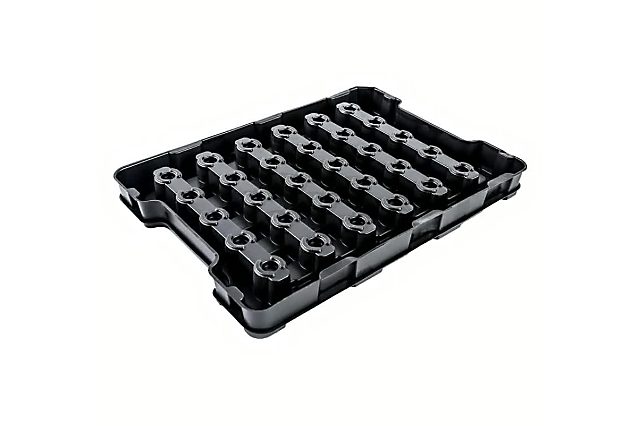

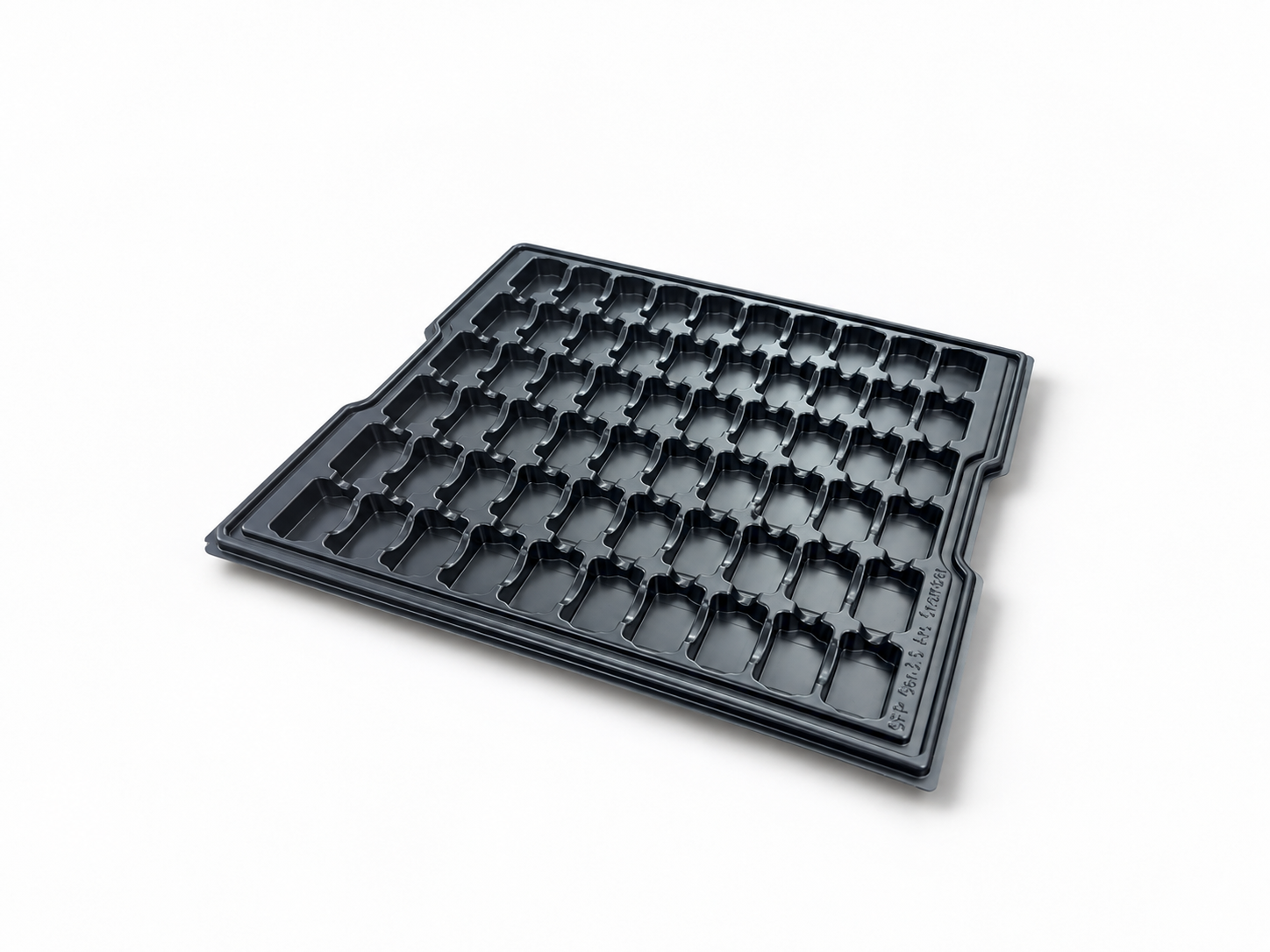

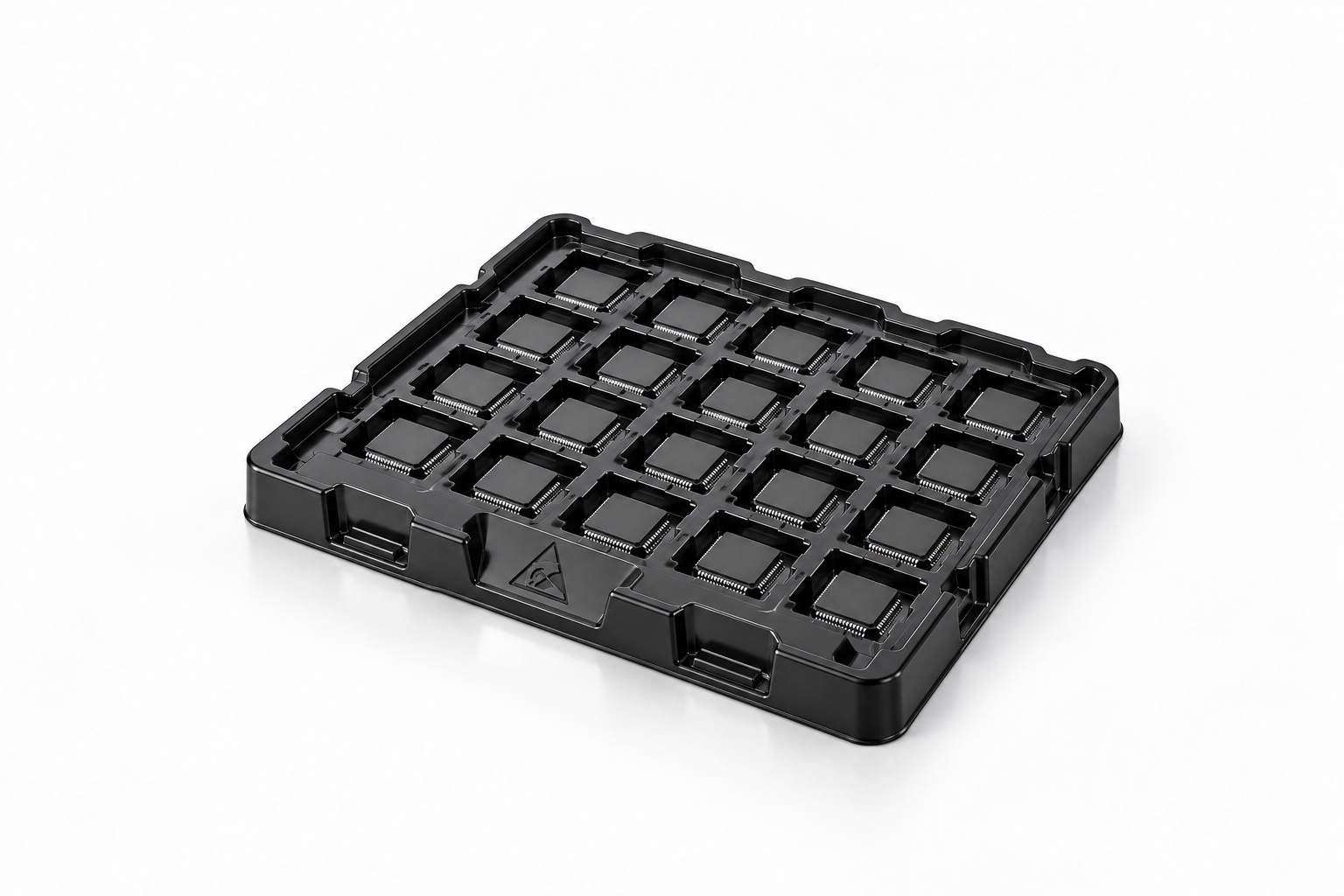

ESD-Safe Thermoforming Trays Manufacturer IndiaAntistatic Electronic Packaging, ESD OEM from Vapi
Custom ESD-safe thermoformed trays for the complete range of ESD-sensitive electronic components — controlled surface resistivity PP and PETG, individual component isolation, resistivity CoA per material batch. ESD packaging OEM from Vapi — ISO 9001:2015 certified.
Click for full
Click for full
Click for full

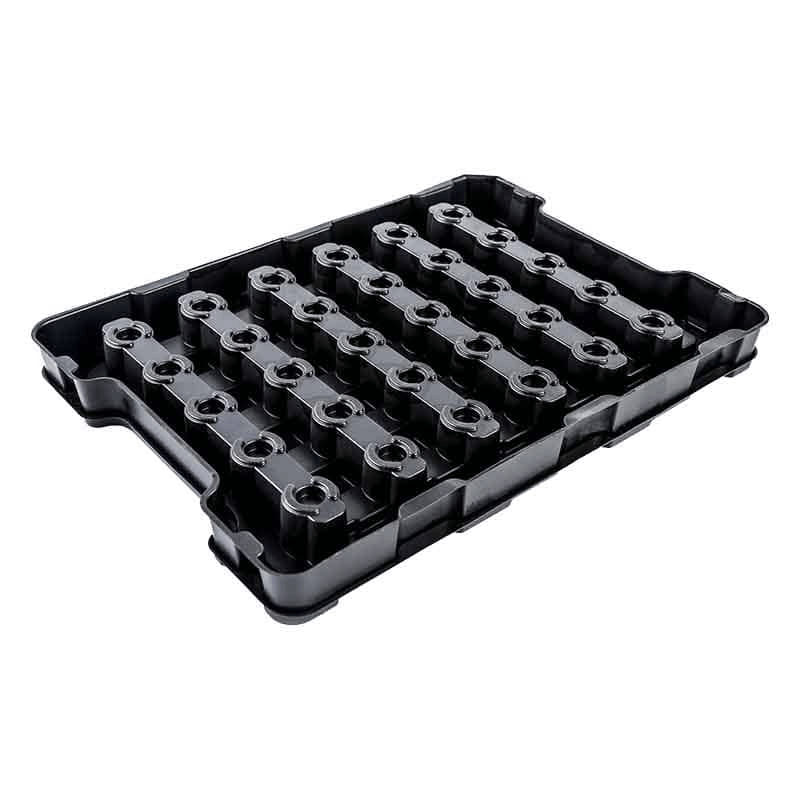

photoESD-Safe Thermoforming Trays Manufacturer IndiaAntistatic Electronic Packaging, ESD OEM from Vapi
Trizen Packaging manufactures ESD-safe thermoforming trays from our ISO 9001:2015 certified facility in Vapi, Gujarat — custom ESD-safe PP and ESD-safe PETG thermoformed trays for ESD-sensitive electronic components. ESD packaging OEM from Vapi Daman for semiconductor components, ICs, microcontrollers, power modules, RF components, and any electronic device sensitive to electrostatic discharge. As an ESD-safe thermoforming trays manufacturer from India, we supply ESD-safe packaging for electronics manufacturers, EMS companies, and semiconductor distributors across India and for export.
ESD-safe thermoforming trays differ from standard thermoformed trays in one fundamental property: surface resistivity. Standard PP is an insulator — it generates and holds electrostatic charge at the packaging surface. ESD-safe PP and PETG have controlled surface resistivity in the dissipative range (10⁶–10⁹ Ω/sq) — charge is continuously dissipated rather than accumulated. This is the difference between packaging that protects from ESD and packaging that causes ESD damage.
| Device / Component | Packaging Format | Material | Key Requirement |
|---|---|---|---|
| Integrated Circuits (ICs) & Microcontrollers | Multi-cavity ESD-safe PP matrix tray | ESD-safe PP | Individual IC cavity, lead/BGA protection, 10⁶–10⁹ Ω/sq confirmed |
| Power Modules & MOSFETs | Precision ESD-safe PP tray | ESD-safe PP | Pin geometry protection, thermal pad clearance, ESD CoA |
| RF & Wireless Modules | ESD-safe PP precision cavity tray | ESD-safe PP | Antenna element clearance, connector protection, ESD-safe confirmed |
| Semiconductor Components | High-density ESD-safe PP tray | ESD-safe PP | Individual component isolation, lead protection, static-free transit |
| Memory Modules (DRAM, Flash) | Multi-cavity ESD-safe PP tray | ESD-safe PP | Module edge connector protection, individual isolation |
| Optoelectronics & LEDs | ESD-safe PETG tray with optical clearance | ESD-safe PETG | ESD protection + optical clarity for inspection, lens clearance |
| High-Value IC Reels & Tape Carriers | ESD-safe PP carrier tray | ESD-safe PP | Reel geometry support, tape-and-reel compatible, ESD-safe |
ESD-Safe Thermoforming Trays — ESD-Safe OEM from Vapi
ESD-safe PP & PETG · Resistivity CoA per batch · ISO 9001:2015 · 7–14 day prototype.
Three Problems ESD-Safe Thermoforming Trays Buyers Face

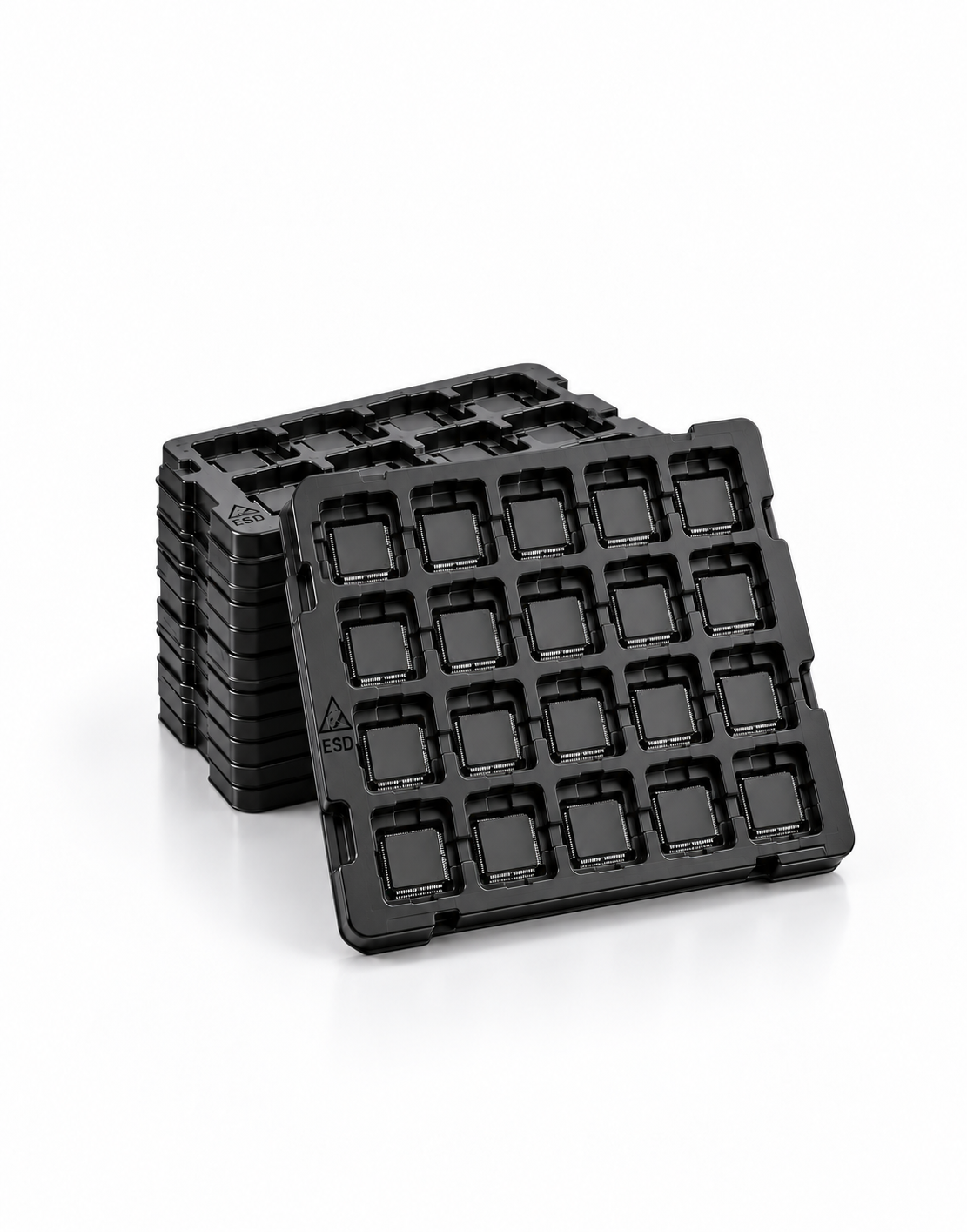

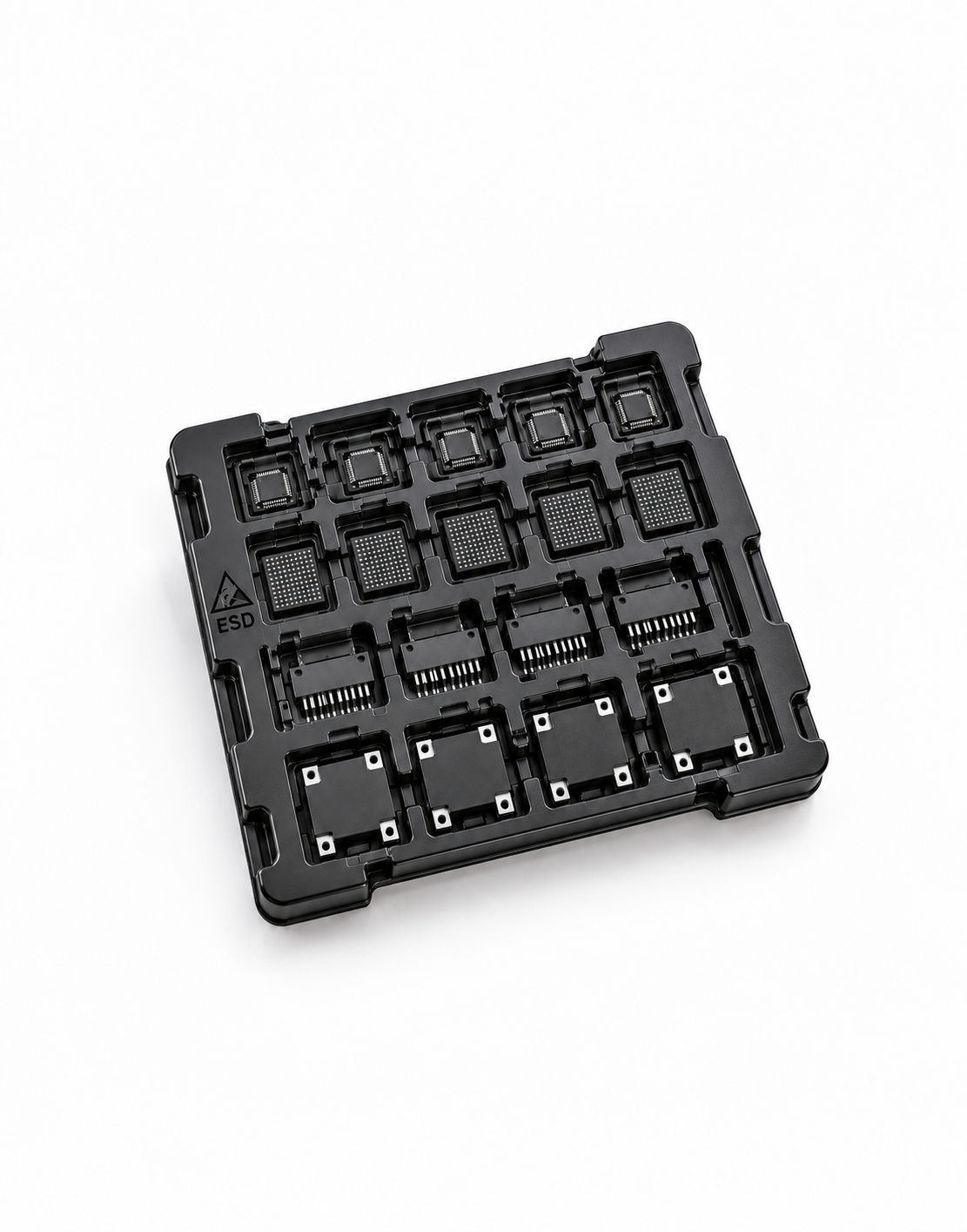

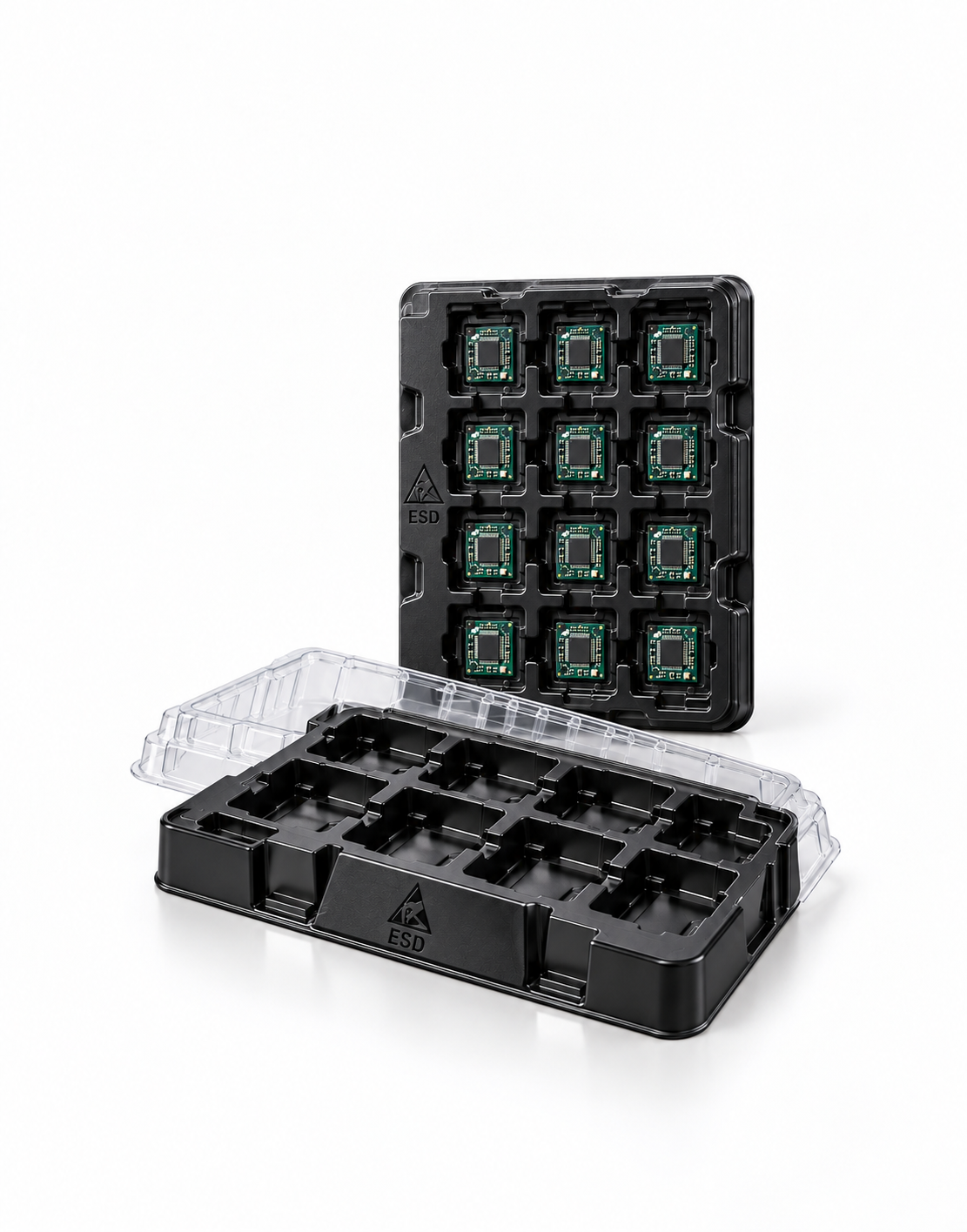

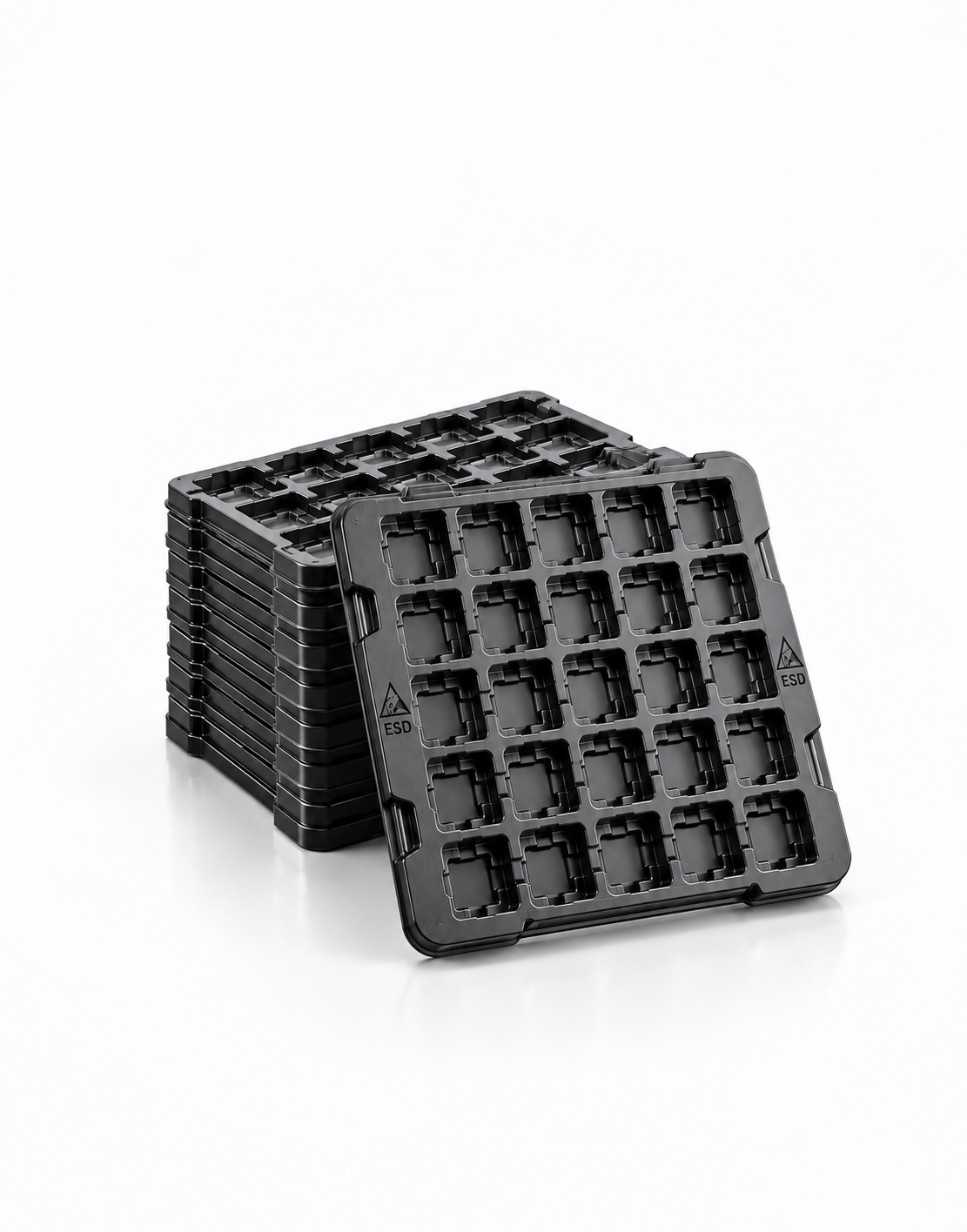

ESD-Safe Thermoforming Trays Key Design Requirements
Click for full photo
01 / ESD-Safe Trays control
ESD-Safe Material Confirmed Before Every Production Run
ESD-safe PP or PETG material grade confirmed per production run — same material source, same batch testing. Surface resistivity CoA issued per material batch used in each production run. No material substitution without resistivity re-confirmation.
ESD-Safe Thermoforming Trays — Submit Component Sample
ESD-safe CoA · Precision cavity · 7–14 day prototype · ISO 9001:2015.
Materials for ESD-Safe Thermoforming Trays
| Material | Electronics Application | Key Property |
|---|---|---|
| ESD-Safe PP | Primary material — all ESD-sensitive electronic component packaging | 10⁶–10⁹ Ω/sq dissipative range, rigid geometry, cost-efficient OEM volumes, CoA per batch |
| ESD-Safe PETG | Optoelectronics, inspection-through-packaging, precision electronics | ESD protection + crystal clarity, 10⁶–10⁹ Ω/sq, optical clearance geometry |
| Standard PP | Outer transit packaging only — NEVER in contact with ESD-sensitive components | Insulating range — not ESD-safe, do not use for electronic component contact |
Why Electronics Manufacturers Choose Trizen for ESD-Safe Thermoforming Trays
Frequently Asked QuestionsElectronics thermoforming packaging
Custom ESD-safe PP and ESD-safe PETG thermoformed trays for ICs, microcontrollers, power modules, RF modules, semiconductor components, memory modules, optoelectronics, and IC reels. Surface resistivity CoA per batch. ISO 9001:2015. ESD packaging OEM from Vapi, Gujarat.
ESD-safe PP and ESD-safe PETG: 10⁶–10⁹ Ω/sq dissipative range. Dissipates charge continuously without rapid discharge current. Confirmed per material batch by CoA.
Standard PP surface resistivity is in the insulating range (>10¹² Ω/sq) — it generates and holds electrostatic charge. ESD-safe PP in the dissipative range (10⁶–10⁹ Ω/sq) continuously dissipates charge. The visual difference is negligible — the ESD protection difference is complete.
Surface resistivity test certificate per material batch, ISO 9001:2015 records, material CoA per batch, dimensional inspection per run, and batch records per run.
ESD packaging OEM manufacturer Vapi Daman — ESD-safe PP and PETG from our Vapi facility. Electronic component thermoforming manufacturer Gujarat. ISO 9001:2015 and resistivity CoA per run.
Yes — ESD-safe PETG combines 10⁶–10⁹ Ω/sq ESD protection with crystal clarity, allowing visual inspection of the electronic component through the closed packaging.
Prototype: 7 to 14 business days. MOQ from 500 units. Resistivity CoA and ISO 9001:2015 per batch.
ESD-Safe Thermoforming Trays — ESD-Safe OEM from Vapi
ESD-safe PP & PETG · Resistivity CoA per batch · ISO 9001:2015 · 7–14 day prototype · Vapi, Gujarat
